In agricultural spraying, boom sprayers and air blast sprayers are two widely used tools, each tailored to distinct crop types and farming scenarios. Their differences span design, working principles, application scope, and performance, making them suited for specific tasks rather than being interchangeable. Understanding these variations helps farmers select the right equipment to boost efficiency and spraying accuracy.

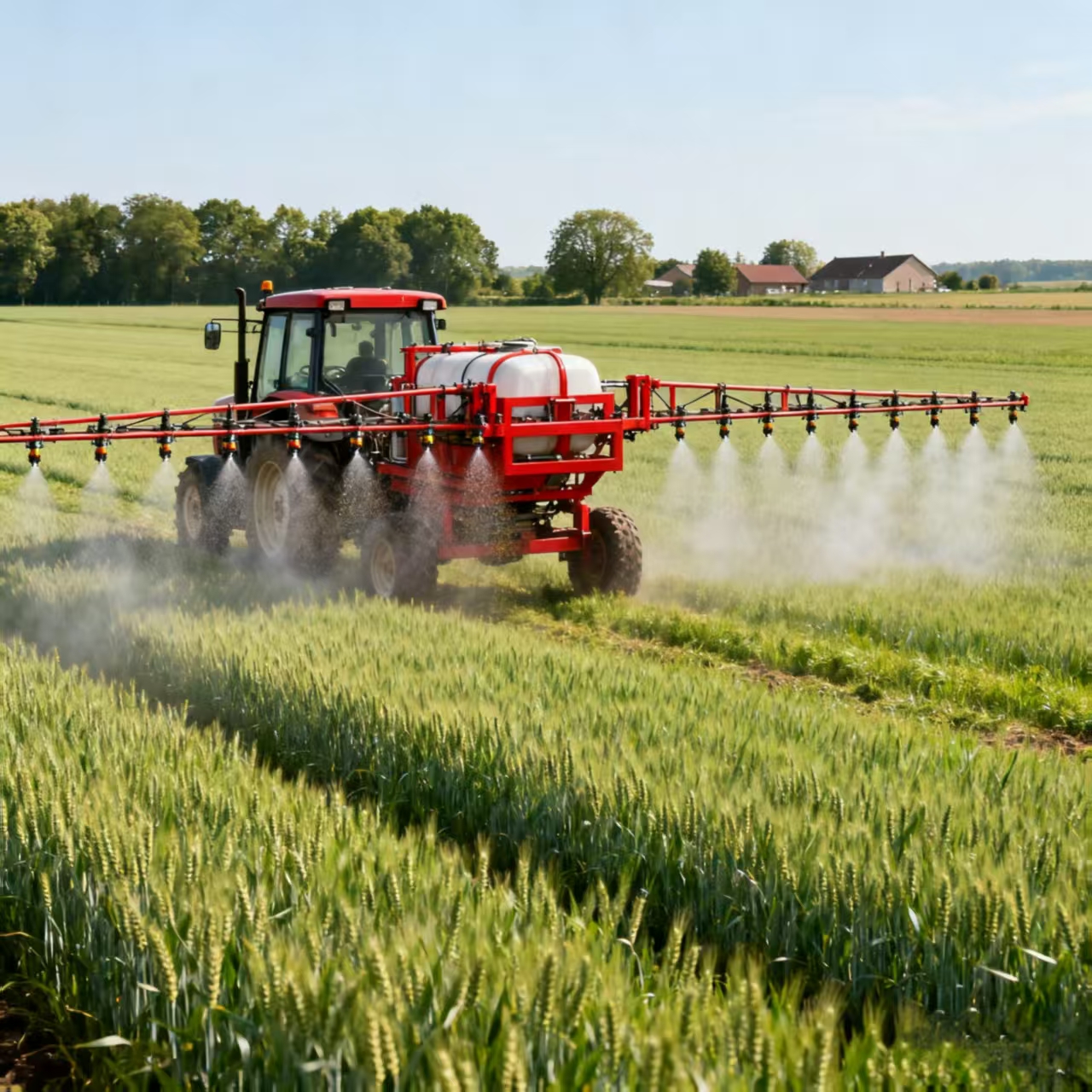

- Boom Sprayers: Characterized by a long, horizontal “boom” mounted on a tractor or self-propelled unit. Booms typically range from 4 to 30 meters in length, with multiple small nozzles evenly spaced along the boom. The sprayer also includes a liquid tank (capacity often 200–2000 liters) and a low-pressure pump. Its overall structure is streamlined, focusing on covering wide, flat areas without obstruction.
- Air Blast Sprayers: Feature a large fan (powered by the tractor’s PTO or a separate engine) and a conical or cylindrical air duct. Instead of a long boom, they have a spray manifold with fewer but larger nozzles, positioned inside the air duct. The tank capacity is similar to boom sprayers, but the fan system adds bulk—making the equipment more compact vertically, ideal for navigating dense tree canopies.
- Boom Sprayers: Operate on a “direct liquid application” principle. The pump pushes liquid (pesticides, fertilizers, or herbicides) from the tank through hoses to the boom’s nozzles. Nozzles atomize the liquid into fine droplets, which fall vertically or at a slight angle onto the target crops. Spraying relies on the sprayer’s forward movement, and droplet distribution depends on nozzle spacing and ground speed.
- Air Blast Sprayers: Use “air-assisted atomization and delivery.” The fan generates high-velocity air (often 50–100 km/h), which first atomizes the liquid as it exits the nozzles, then carries the droplets outward and upward. This air flow penetrates dense foliage, ensuring droplets reach both the upper and lower parts of tree canopies—overcoming the challenge of covering vertical, layered crops.
- Boom Sprayers: Designed for flat, large-scale field crops with low to medium height. This includes wheat, corn, soybeans, cotton, and vegetable patches. Their long booms cover 4–30 meters per pass, making them efficient for vast, open fields where crops grow in uniform rows or mats. They are not suitable for tall or dense crops, as the boom may collide with plants or fail to reach upper layers.
- Air Blast Sprayers: Specialized for orchards, vineyards, and tall tree crops (e.g., apple, citrus, mango trees, or grapevines). The high-velocity air bypasses thick branches and foliage, ensuring droplets adhere to leaves, fruits, and even the undersides of branches. They also work for ornamental shrubs or nursery stock, where targeted coverage of vertical growth is critical.
- Boom Sprayers: Excel in area coverage efficiency. A 12-meter boom sprayer, for example, can cover 12 hectares per hour at a speed of 10 km/h—far faster than air blast sprayers for field crops. Precision is high for uniform, low-growing crops, as nozzle spacing ensures even droplet distribution (with minimal overlap if calibrated correctly).
- Air Blast Sprayers: Prioritize penetration precision over speed. They are slower (covering 2–5 hectares per hour for orchards) but ensure droplets reach hard-to-access areas of trees. However, they are less precise in open fields: wind can disperse the air-carried droplets, leading to drift or uneven coverage on flat crops.
- Boom Sprayers: Sensitive to wind. Even mild winds (3–5 km/h) can blow horizontal droplets off target, causing drift. They perform best in calm, clear weather and on level terrain—slopes may disrupt vertical droplet fall and lead to uneven coverage.
- Air Blast Sprayers: More wind-tolerant. The directed air flow helps stabilize droplets, reducing drift in light winds. They also adapt to sloped or hilly orchard terrain, as the air can carry droplets upward to higher tree rows without relying on gravity.
In conclusion, boom sprayers and air blast sprayers are optimized for distinct agricultural needs: boom sprayers for efficient, wide coverage of field crops, and air blast sprayers for precise, deep penetration in tree-based cultivation. Choosing between them depends on crop type, field layout, and the need for either speed or foliage penetration.
