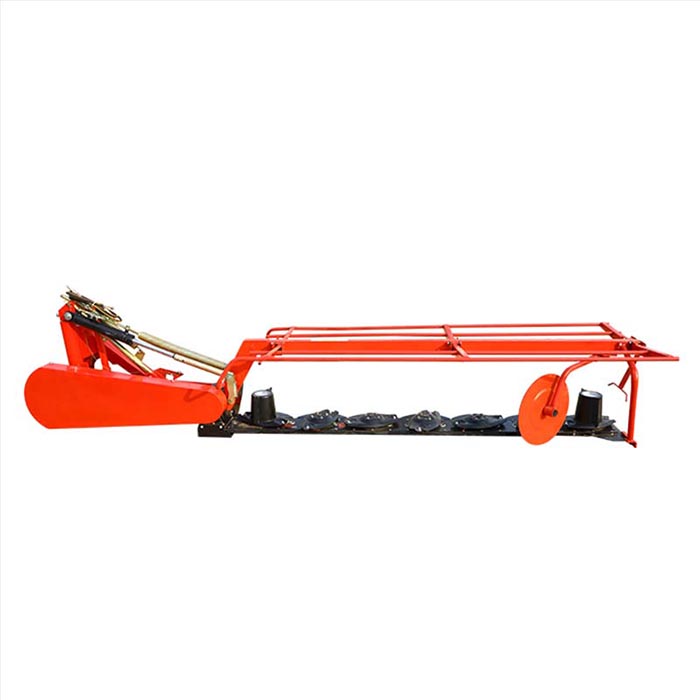

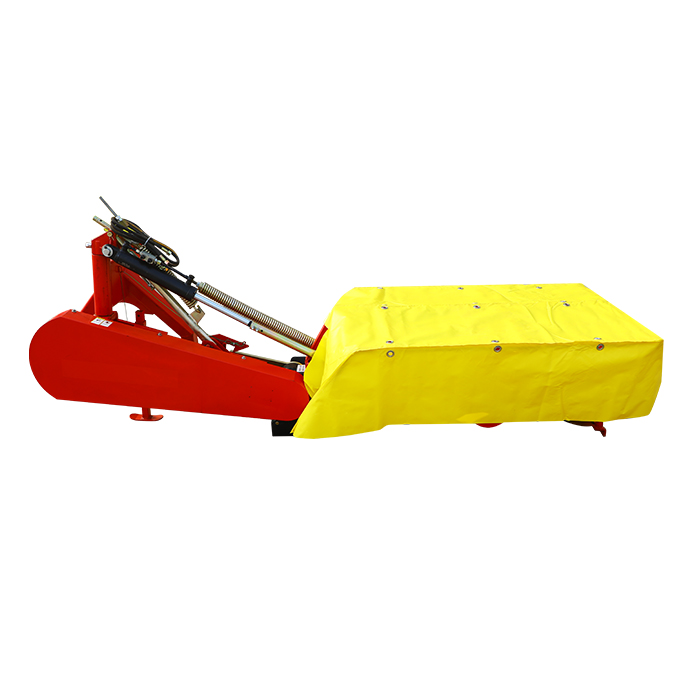

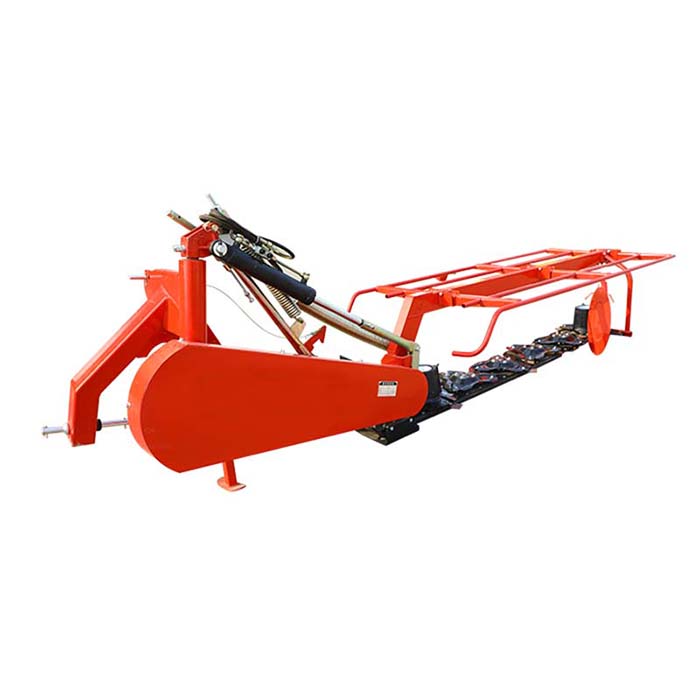

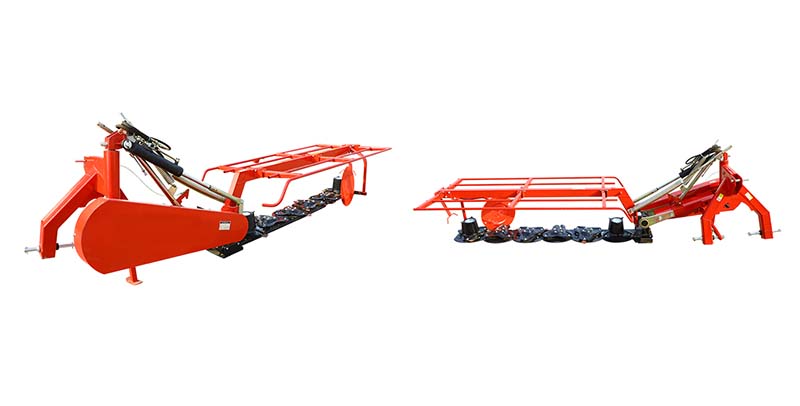

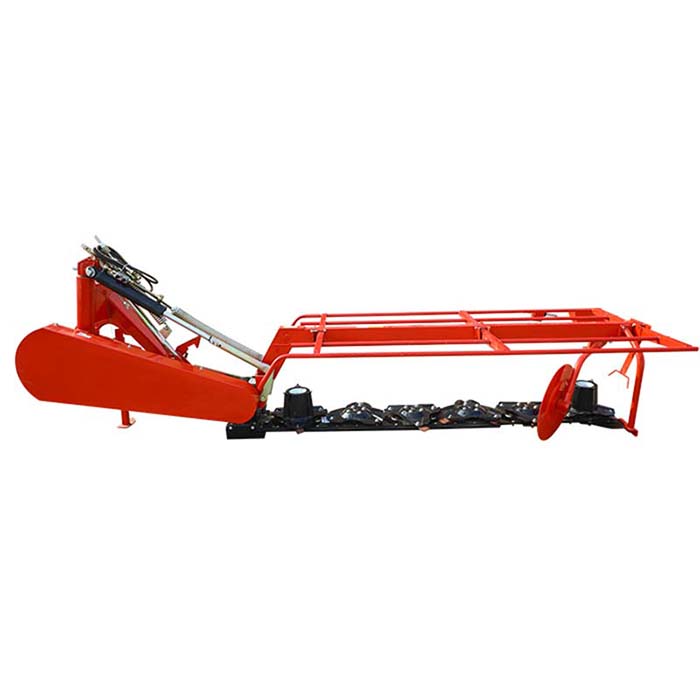

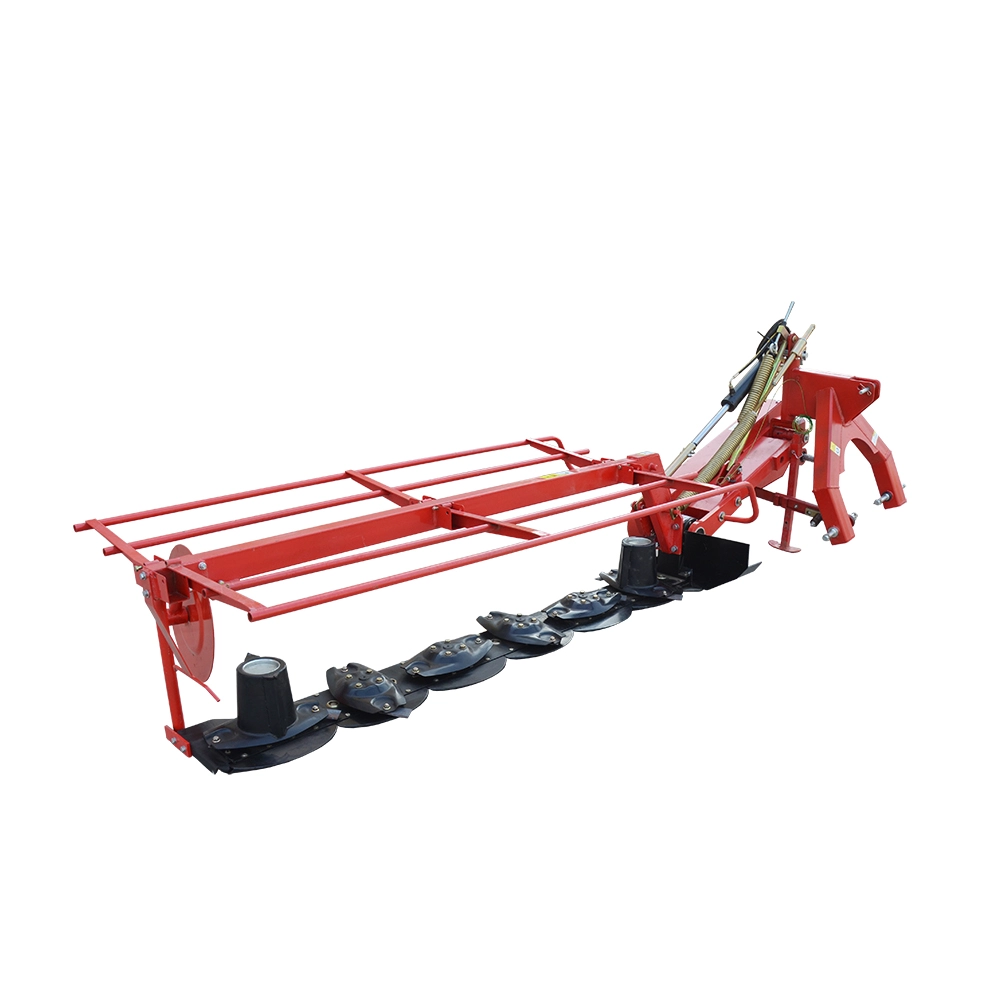

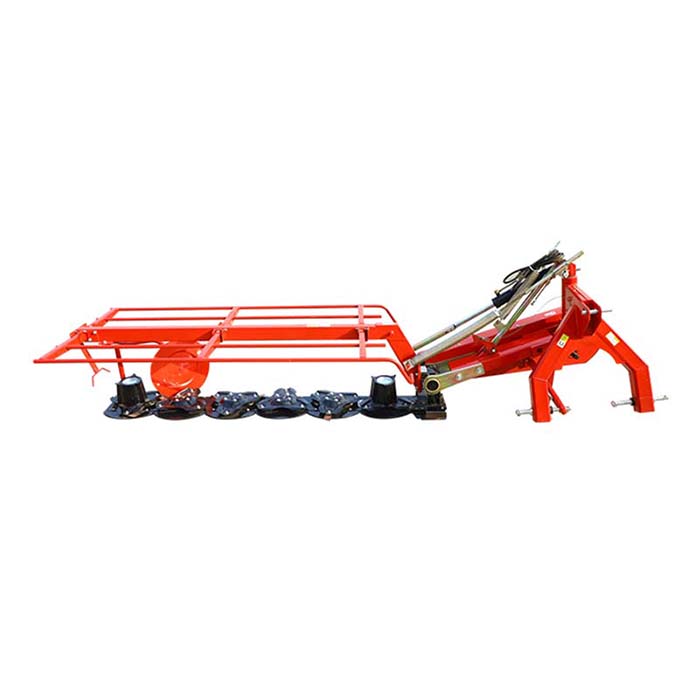

The tractor mounted disc mower is also called disc mower, which is mainly used for various types of harvested, suitable for large -scale animal husbandry grass field operations. The machine have high work efficiency, which is more suitable for tall crops than a duplex cutting machine. Because the knife is equipped with a spiral handle, it is easy to raise and down. Double spring suspension can adapt to the unevenness of the ground without damaging the grass. The gear box is high, and the gear is good. The cutting tray is tightly tested by strict air tightness, which is not easy to leak oil. It is a suitable choice for large pastures to harvest pasture.
| Model | 9G-1.7 | 9G-2.1 | 9G-2.4 | 9G-2.8 |
| Number of disc | 4 | 5 | 6 | 7 |
| Number of knives/disc | 2/3 | 2 | 2/3 | 2 |
| Working Width(M) | 1.7 | 2.1 | 2.4 | 2.8 |
| Dimension(MM) | 3200*1250*1350 | 3700*1250*1350 | 4000*1250*1350 | 4400*1250*1350 |
| Weight(KG) | 475 | 480 | 510 | 566 |
| Matched Power(HP) | 40-90 | 50-120 | 70-130 | 90-140 |
| Working Rate(Area/H) | 20 | 25 | 30 | 35 |
| Hydraulic | Standard | |||
| Iron Cover | Standard | |||
As the mower moves across the lawn, the rotating blades on the disc cut the grass. The blades of the disc make for a clean mowing effect. The height of the cut is adjusted by changing the position of the hood relative to the ground, usually with the help of a series of adjustable levers or knobs.
All the tractor mounted disc mower are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.
All the frames is welded according to the machine size, to make sure the minimum size and weight.
If you have any questions about tractor mounted disc mower, welcome to contact us!
