The farm tractor engine makes it easy to plow the fields. This farm tractor is easy to operate. The implements can be raised and lowered, and it can be lifted and lowered to sow, fertilize, spray weeds and transport agricultural products.It can operate even under complex field conditions and improve agricultural production efficiency.

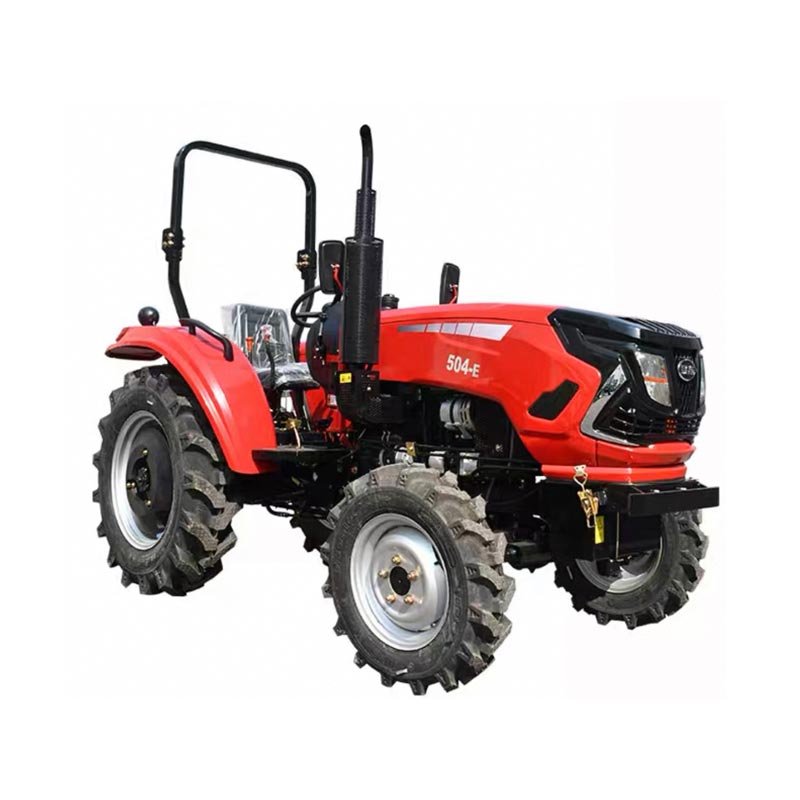

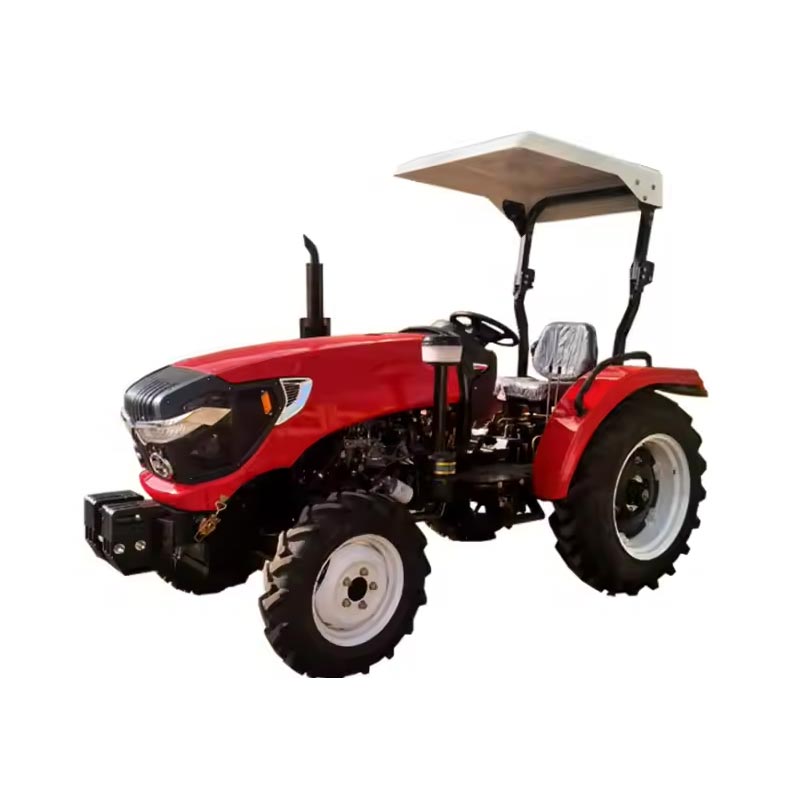

| 504 Main technical parameters | |||
| Model | 504 | ||
| Type | 4×4wheel type | ||
| Dimensions of Tractor (mm) | Length | 3558 | |
| Width | 1500 | ||
| Width | 2245 | ||
| Wheel Distance | Front Wheel | 1040/1140/1240 （ adjustable） | |
| Rear Wheel | 960-1300（adjustable） | ||
| Wheel Base | 1820 | ||
| Min ground clearance | 325mm | ||
| Tyre ( Front Wheel/ Rear Wheel) | 6.50-16/11.2-28 | ||
| Engine | Engine Model | 4B5-50V32 | |
| Engine Tyre | Four cylinder, inline, water cooling, four stroke | ||
| Nominal power(KW) | 36.8 | ||
| Calibrated RPM（r/min） | 2400 | ||
| Transmission Box | 4 (2 + 1) Composition formula | ||
| Min service quality | 1650 | ||
| Gross weight(kg) / Net weight(kg) | 1760/1650 | ||
Operating farm tractors is not complicated. Follow the steps below to carry out operations safely and efficiently.
Check the vehicle condition: Walk around the tractor to check if the body is damaged. The tire pressure is normal and the surface is not damaged; the water level of the water tank, the oil level of the fuel tank and the engine oil are sufficient; there is no sign of looseness or damage to the parts.
Clean up debris: Clean up the debris, tools, etc. on the tractor to avoid danger caused by falling objects during operation.
Starting operation: Slowly depress the clutch pedal, shift the gear to the desired gear, then slowly lift the clutch, lightly step on the accelerator, and the tractor can start.
Driving control: When driving, the speed and gear according to the road conditions, hold the steering wheel with both hands to control the driving direction.
Farm implement operation: Control the lifting of the farm implement through the hydraulic lifting device, so that the farm implement can complete the tillage and sowing.
Farm tractors can complete large-scale farmland operations, shorten time and increase crop yields.
If you have any questions about farm tractors, welcome to contact us!
