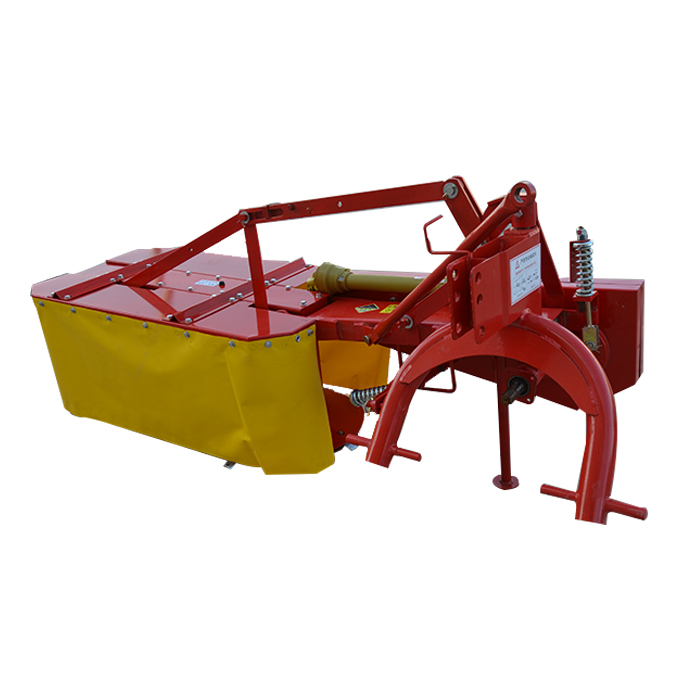

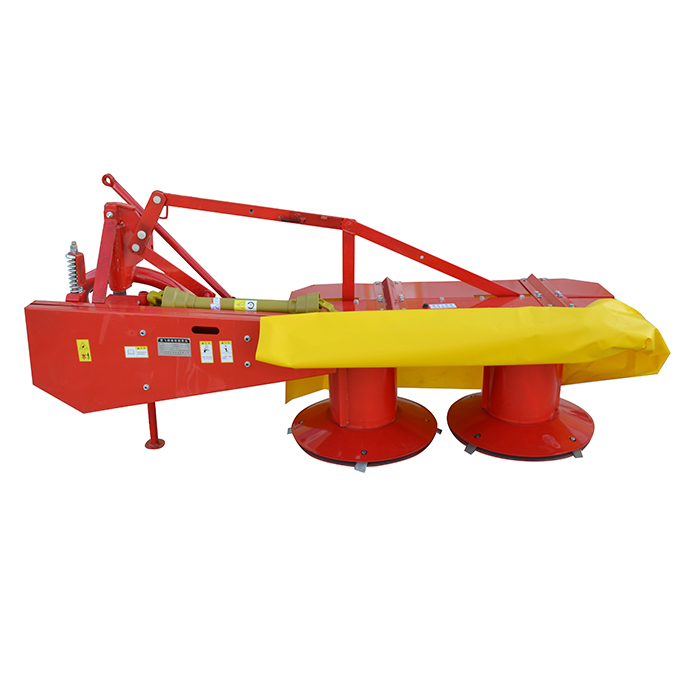

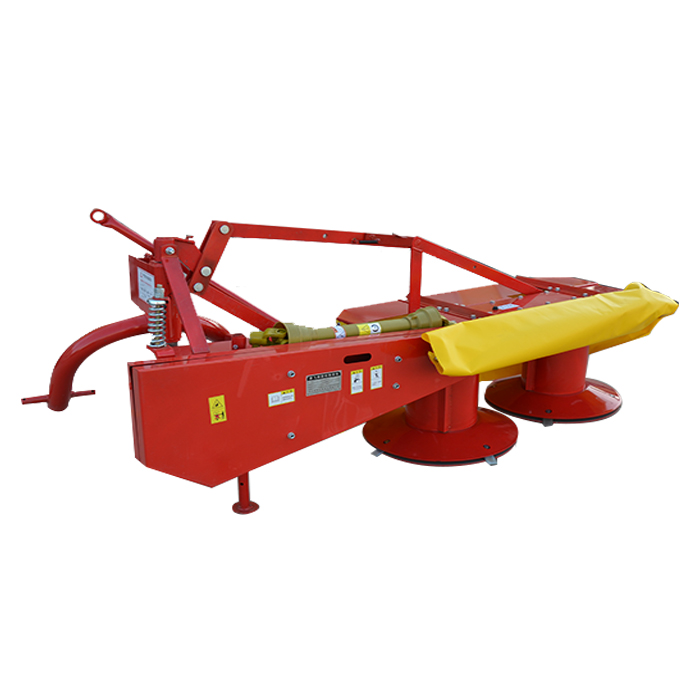

The tractor mounted hay mower can quickly cut grass and straw with the help of multiple sets of high-speed rotating blades, and can efficiently harvest a variety of grasses such as alfalfa, ryegrass, oat grass, and high-yield straw crops such as reeds. The power is transmitted to the gearbox through the tractor pulley, and then transmitted to each blade through the cutting rod gear set. The blade forms a strong cutting force under the action of high-speed rotating centrifugal force, which can quickly cut off grass stems and straw.
This tractor matched hay mower offers a variety of models for you to choose from, and you can choose according to your actual needs.
| Model | 9G-1.7 | 9G-2.1 | 9G-2.4 | 9G-2.8 |
| Number of disc | 4 | 5 | 6 | 7 |
| Number of knives/disc | 2/3 | 2 | 2/3 | 2 |
| Working Width(M) | 1.7 | 2.1 | 2.4 | 2.8 |
| Dimension(MM) | 3200*1250*1350 | 3700*1250*1350 | 4000*1250*1350 | 4400*1250*1350 |
| Weight(KG) | 475 | 480 | 510 | 566 |
| Matched Power(HP) | 40-90 | 50-120 | 70-130 | 90-140 |
| Working Rate(Area/H) | 20 | 25 | 30 | 35 |
| Hydraulic | Standard | |||
| Iron Cover | Standard | |||

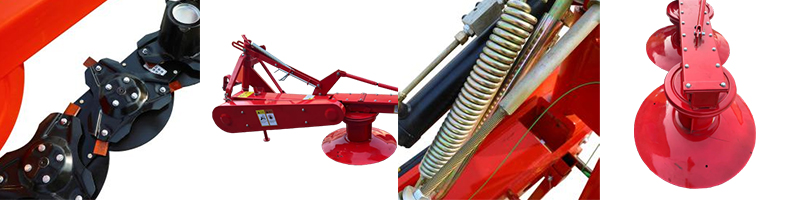

1. The hydraulic lifting system is standard configuration, which can accurately adjust the mowing height and quickly switch the working scene;
2. The standardized combination design of iron rail + plastic protective cover is adopted, which takes into account the structural strength and component protection performance;
3. Equipped with a three-point suspension device, with the PTO shaft as the core power support, to ensure operational stability and power transmission efficiency;
4. Equipped with a heavy-duty four-belt transmission system and a steering shaft transmission structure, making torque transmission safer and the machine more durable;
5. The cutting component uses a manganese steel alloy blade and a high-strength rust-proof stainless steel knife, which can cut all kinds of forage and straw crops.
In addition to tractor matched hay mower, our boom sprayers, fertilizer spreaders and land levelers are also popular among customers due to their excellent performance. We sincerely invite you to consult and discuss cooperation.
With advanced technology and efficient operation capabilities, FASTMA® provides high-quality solutions of modern agricultural equipment. We look forward to working with you to create business opportunities.
