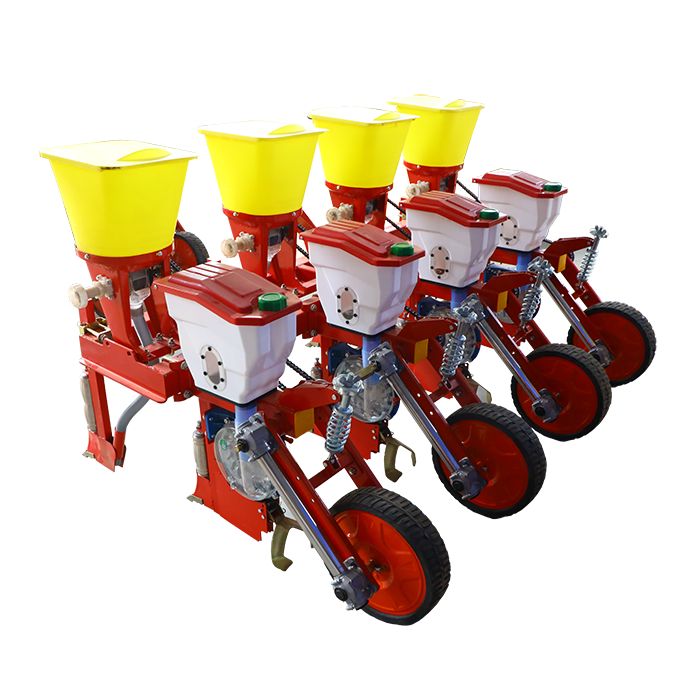

The 4-row corn planter consists of a thickened and reinforced frame, seed metering device, furrow opener, fertilization device, and depth limiting wheels, among other key components. The core of the equipment lies in its precision seeding system, which ensures that every seed lands accurately in the seed hole. To adapt to different soil environments, this planter uses high-strength alloy steel at the frame connections, effectively improving its stability when operating on complex terrain.
The 4-row corn planter employs an advanced mechanical or pneumatic seed metering principle. When the tractor pulls the planter, the transmission system drives the seed metering disc to rotate. The furrow opener first cuts standard-width furrows on the ground, then the seed meterer evenly distributes the seeds at preset intervals. Immediately afterwards, the covering wheel seals and compacts the soil, ensuring close contact between the seeds and the soil, greatly improving the germination rate.
1.This 4-row corn planter is a multi-functional device that can complete tasks such as trenching, fertilizing, sowing and covering in a single operation.
2. The planting depth and row spacing can be adjusted flexibly. Whether it is a large-scale flat land plot or a hilly plot, it is suitable for large-scale corn cultivation.
3. More practical than traditional small seeders, with a working width that precisely matches the power of mainstream large and medium-sized tractors.
Can be used with tractors ranging from 50 to 90 horsepower, meeting the needs of various planting scales.Line spacing adjustment: The standard line spacing can be adjusted between 500 and 700 millimeters, which is suitable for the planting requirements of different corn varieties.Sowing accuracy: The sowing depth error is no more than 5 millimeters, resulting in more uniform seedlings.
The maximum running speed is 8 kilometers per hour, which is tens of times higher than the efficiency of manual sowing. It can quickly complete the sowing task.
To maintain the optimal condition of the 4-row corn planter, the residual materials in the box should be cleared at the end of each planting season. The transmission chain and bearings should be lubricated regularly to prevent rust. If the furrower blade shows severe wear, it is recommended to replace it. FASTMA® provides comprehensive technical support for this seeding equipment to ensure normal operation during the spring sowing peak period and support agricultural development.
