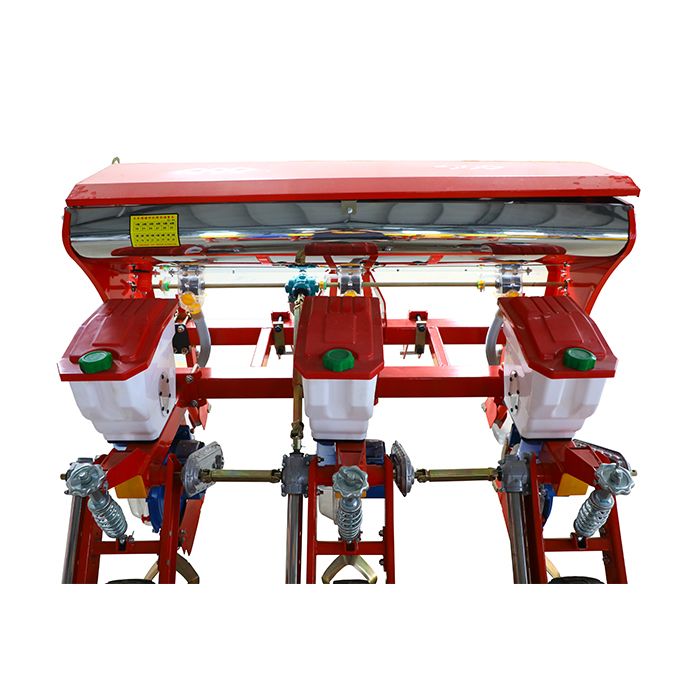

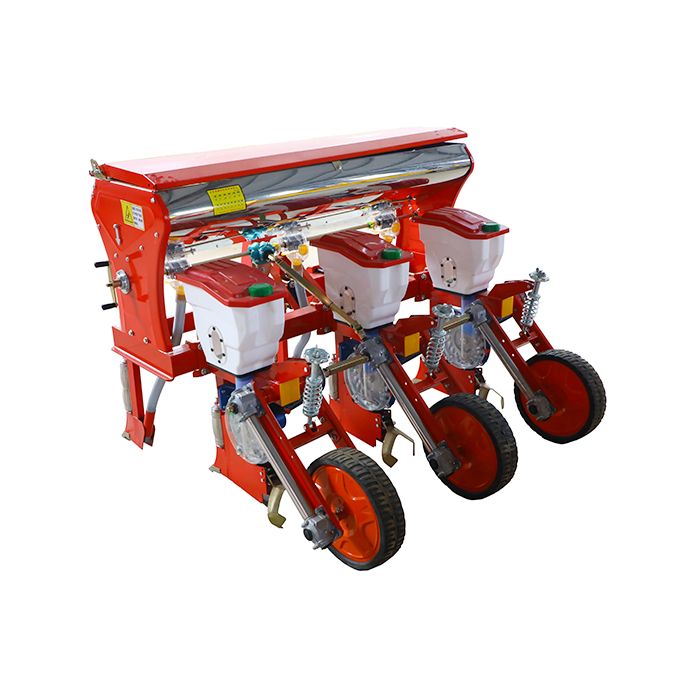

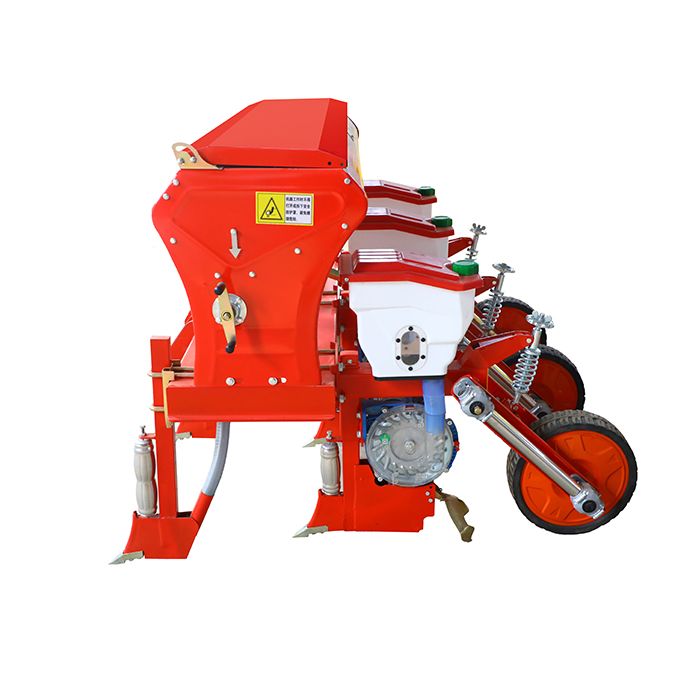

This precision corn seeder, which is matched with a small four-wheel tractor, is designed for no-till land. It can achieve single-grain precision sowing, and apply crystal fertilizer in strips. It can complete the processes of furrow fertilization, furrowing, sowing, covering soil, and compaction in one go. The two-row model can be covered with plastic film after installing a film laying device. It can be used for fertilizing and sowing crops such as soybeans, peanuts, and corn in plains and hilly areas.
|
Model |
FFT-2 |
FFT-3 |
FFT-4 |
|
Dimension (MM) |
1500*1260*1000 |
1600*1830*1000 |
1600*2200*1000 |
|
Structural Mass(KG) |
240 |
360 | 480 |
|
Working Width(CM) |
100-140 |
150-210 |
200-240 |
|
Number of Rows Sown |
2 | 3 | 4 |
|
Basic Line Spacing(CM) |
50-70 |
50-70 |
50-60 |
|
Matched Power(KW) |
11-22 |
11-22 |
22-36.8 |
|
Working Rate(hm2/h) |
0.2-0.3 |
0.26-0.33 |
0.4-0.5 |
|
Fertilizer Discharge Form |
Outer groove wheel |
||
|
Transmission Mode |
Chain, tooth drive+shaft drive |
||

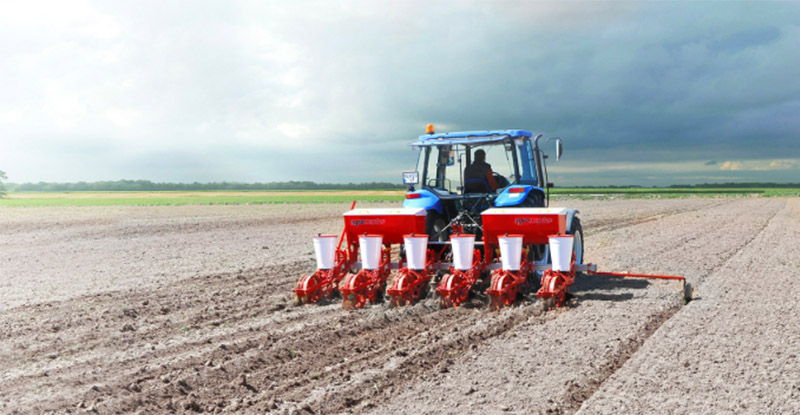

The precision corn seeder is suitable for planting crops such as corn, beans, and peanuts. It is easy to operate and widely used. It can be used with a four-wheel tractor and is suitable for plains and hilly areas. It can not only sow crops such as corn, soybeans, and sorghum, but also complete fertilization work at the same time, realizing the multifunctional application of tractors.
The precision corn planter is fixed to an iron frame with steel wires. The iron frame is made of steel with a thickness of more than 3 mm. It is strong and durable, and can effectively carry and protect the machine. The black plastic film covers the body of the machine, which can not only protect it from rain and sunlight, but also keep the size and weight of the machine small.
If you have any questions about the machinery, please feel free to contact us! Farming First Agricultural Machinery sincerely invites you to join us as our wholesaler and long-term partner. As a local factory in China, we will serve you wholeheartedly.
