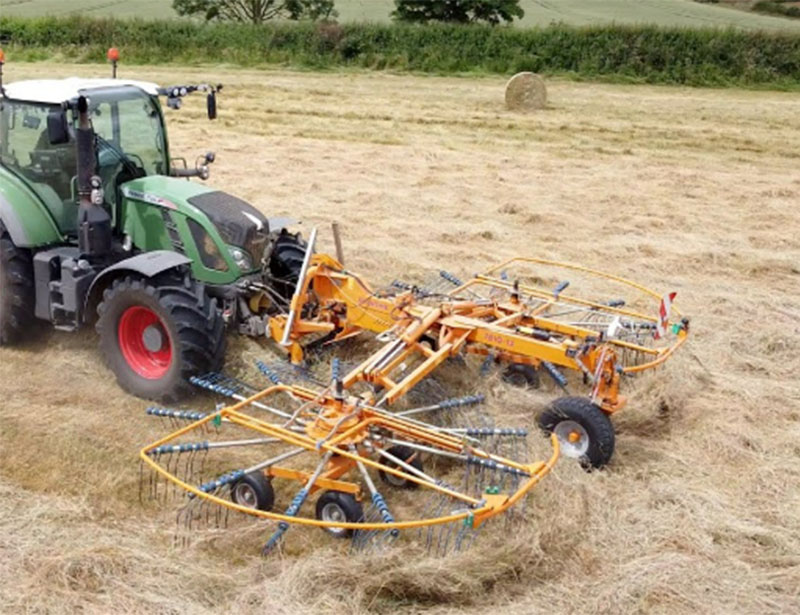

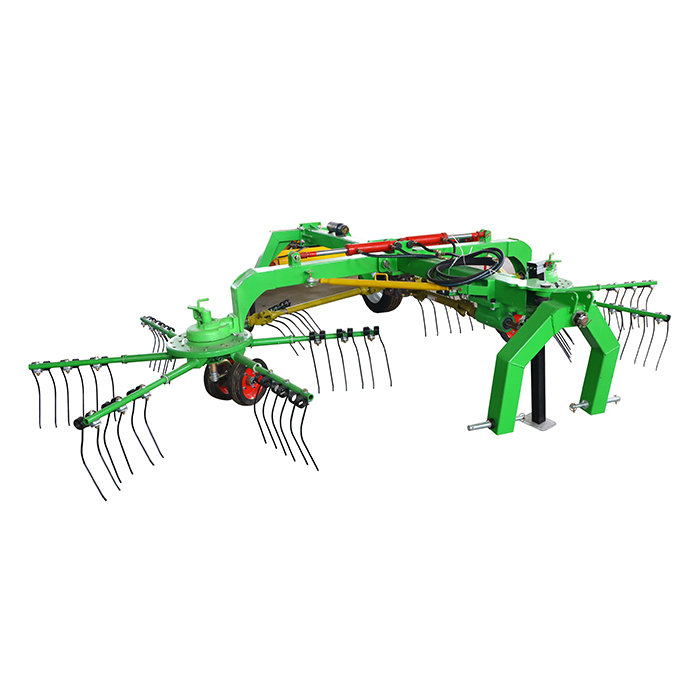

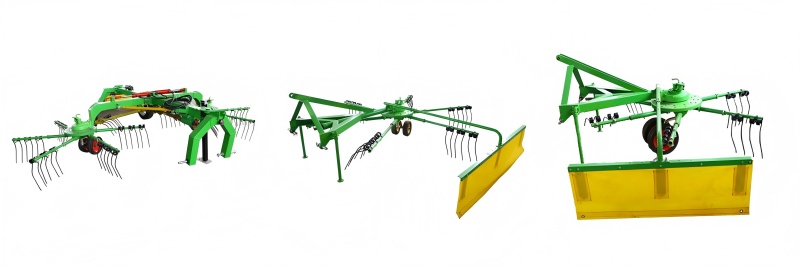

Agricultural Rotary Hay Rake

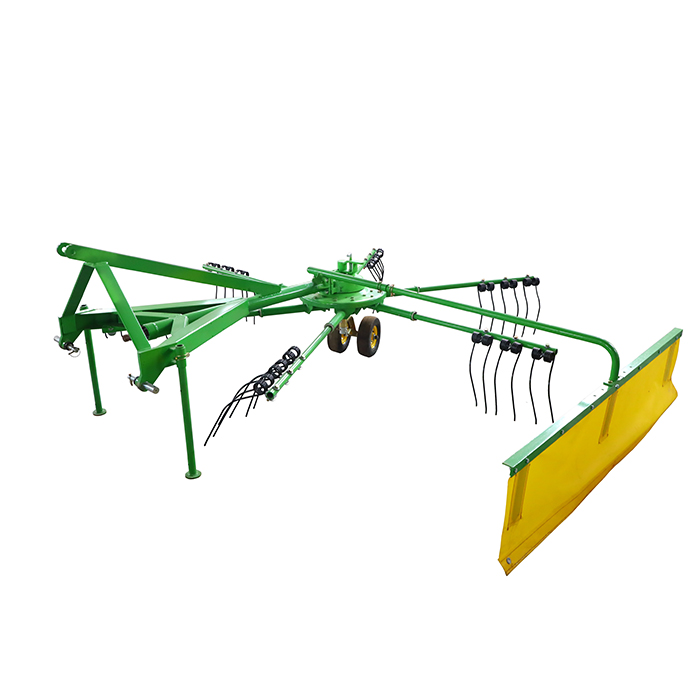

The agricultural rotary hay rake is used for collecting, spreading, and flipping grass, rice and wheat straw, corn straw, etc. This machine is composed of components such as a frame, transmission mechanism, rotating body, wheels, and lower windshield.

The power obtained from the tractor is transmitted through the coupling to the bevel gear rotating body, and then to the rake arm, which drives the rake tooth spring for operation.

Its arm and toothed spring can spread and turn over a large area of scattered grass, straw, etc., allowing them to be fully dried before bundling. Finally, it is integrated into a strip shape for the baler to pick up and bundle, in order to improve the cleanliness of picking up and improve work efficiency.

Features

1. Raking grass efficiently reduces losses

When raking grass, it can be made very even and neat, without missing too much grass, and the work efficiency is also higher.

2. Simple operation, worry-free and durable

It is very simple to operate, the machine performance is stable, very durable, and can be used for many years.

3. Power terrain adaptation

It can be used with tractors from 18 to 50 horsepower, and it has a built-in automatic tracking and swinging function, which can also adjust itself when encountering uneven ground.

4. Cam structure collaborative operation

It uses a particularly good cam design, which is very synchronized with the tractor, and it has a built-in automatic swinging function, which makes the raking more even.

5. One-button control for reverse sowing

Just press the switch to sow grass in reverse, and the wheels can rotate freely without getting stuck. It is easy to use the tractor with rakes for straw and corn stalks.

Issues to note

When using an agricultural rotary hay rake, safety is the primary premise. Operators must wear protective equipment, set warnings and stay away from moving parts. Before operation, the equipment must be fully inspected, including the stability of each component, tire condition and lubrication points; adjust parameters reasonably according to the conditions of the grass and ground, operate at a moderate speed, and always pay attention to the working conditions. After operation, clean up debris in time and store in a dry and ventilated place. For long-term parking, comprehensive maintenance such as rust prevention and protection of rubber parts is also required.

Package

The Agricultural Rotary Hay Rake is fixed to the iron frame by steel wire. The frame is made of steel with a thickness of more than 3 mm and welded according to the size of the machine. It is strong enough to provide sufficient load-bearing and protection capabilities while controlling the size and weight as much as possible.

The black plastic film can protect the machine from rain and sun.
