Flat field is the basis of farming. With the emergence of more large -area
planting places and farms, the surface is flat, the planting conditions, the
use of water resources, and the utilization of fertilizers have put forward
higher requirements.
With the application of GNSS high -precision positioning systems such as GPS
and Beidou, Flat satellite land leveller have begun to play a role in
agricultural production with its all -weather, high -precision, and
distance. This Flat satellite land leveller combines advanced GNSS
technology to achieve centimeter -level flat land through RTK differential
operations, providing technical guarantees for agricultural production flat
land.
| MODEL | 12WJ-300A | Shovel Box Capacity (m³) | 6 |
| DEMENTION:(L*W*H) MM | 4800*4100*1300 | Number of oil pipes (PCS) | 8 |
| PACKING SIZE: (L*W*H) MM | 4800*2500*1300 | Discharging method | Hydraulic |
| G.W. (T) | 2.4 | Operation hour productivity (666m²/h ) | 8-10 |
| STRUCTURE | suspension tail type | Discharging and separation device type | Hydraulic |
| MATCHED POWER HP | ≥1504 | Wheelbase (outermost) | 2660 |
| MATCHED POWER OUTPUT SHAFT SPEED (r/min) | 540/720 | Tire model | 26*12-R12 |
| WORKING BREADTH(MM) | 4000 | Tire quantity(PCS) | 2/4 |
| TOLERANCE (MM) | ≤20 | Soil collection method | Shovel suitcase |
(1) Land leveler transmitter: The transmitter is fixed on a tripod. The transmitter emission reference plane has a rotational speed of 300-600r/min and an effective beam radius of 300-450m. The flat satellite land leveller part is installed on the universal joint system, and the beam plane can tilt according to a predetermined slope.
(2) satellite land leveller receiver: The receiver is fixed on the telescopic rod of the scraper and connected to the control box with a cable. After receiving the beam emitted by the transmitter, the optical signal is converted into an electrical signal and sent to the control box through a cable.
(3) Flat satellite land leveller control box: receives on board receiver signals for calculation and analysis, and commands electromagnetic hydraulic valves.

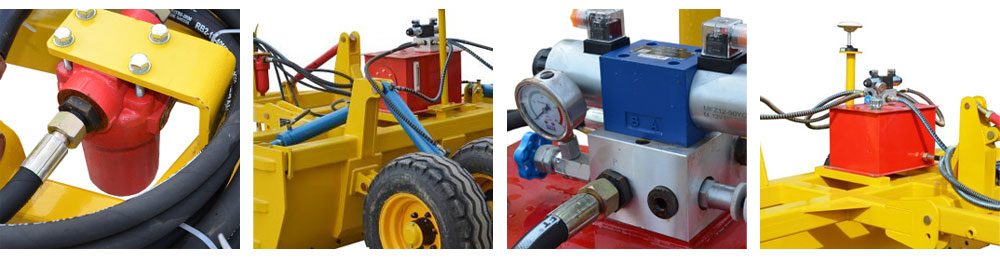

(4) Hydraulic control valve of land leveler: The hydraulic valve is installed on the tractor and connected to the tractor hydraulic system. In automatic control mode, the corrected signal is converted through the control box to activate the solenoid valve, change the position of the hydraulic control valve, change the flow and direction of hydraulic oil, and control the lifting and lowering of the land leveler through the expansion and contraction of the oil cylinder plunger.
The working principle of a the satellite land leveller is that a beam of light is emitted by the transmitter to form the reference plane of the land. The receiver is installed on the telescopic rod of the shovel transportation section, and after detecting the signal, the receiver continuously sends a signal to the control box. After receiving the signal, the control box makes corrections. The corrected signal controls the hydraulic valve, changes the flow direction and flow rate of hydraulic oil to the cylinder, and automatically controls the height of the scraper.
Our Flat satellite land leveller cover most of the Asia, Middle East, and Africa markets. We have satellite land leveller ready in stock here in our factory . We look forward to becoming your long-term partner.
If you have any questions about satellite land leveller, welcome to contact us!
