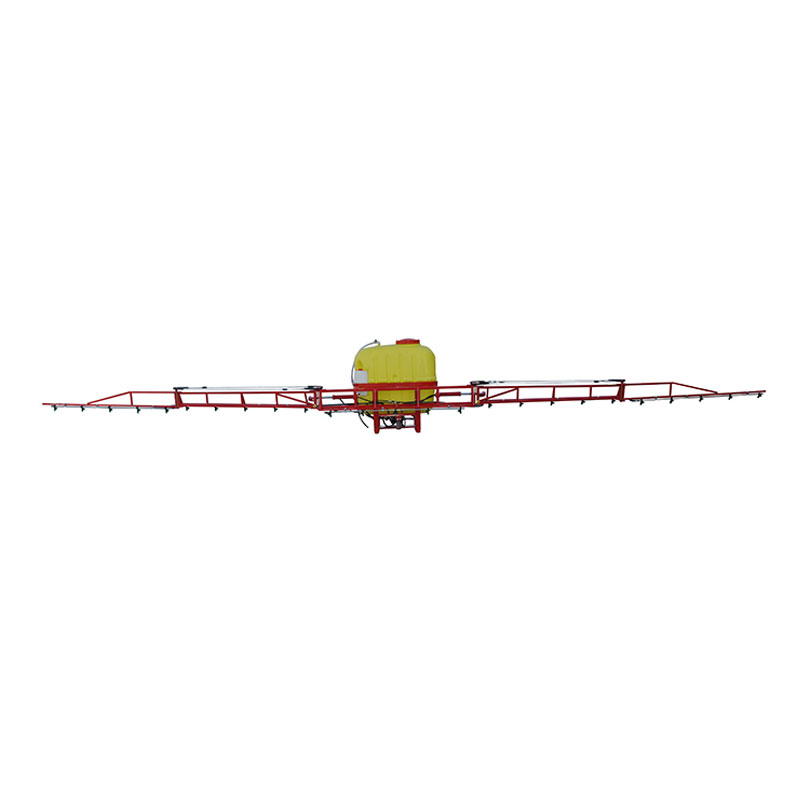

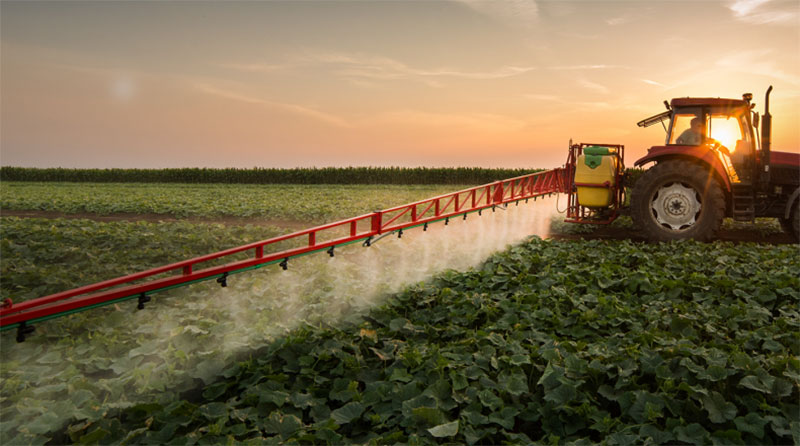

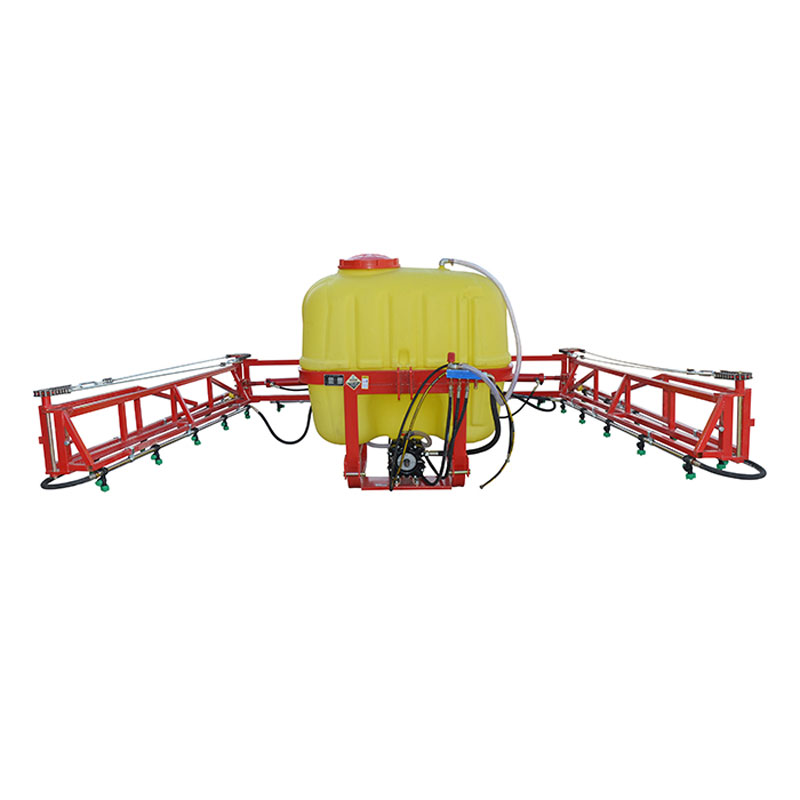

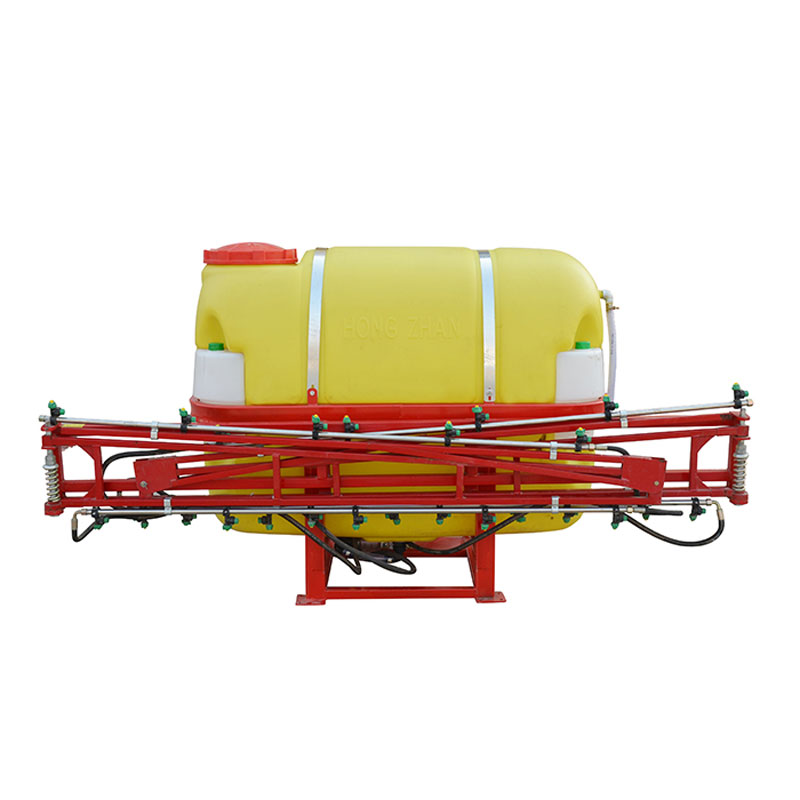

Our manual boom sprayer is best for spraying fungicides and pesticides on crops, such as sugarcane and cotton. You can spray on large fields and pastures using it. It is equipped with several spray tips on each side that are pointed downward for direct spray on fields. These are better at resisting wind as they are closer to ground. They minimize the possibility of a chemical drift. They are easy to observe hence offer great coverage. Our manual boom sprayer will help you save your time and money due to minimal overlap of chemical.
As a factory of manure boom sprayer, there are many different models available for your choice, please kindly check the below detailed parameters of manual boom sprayer:
| Model | Structure | Max Capacity(L) | Matched Power(HP) | Spray Rod Length(MM) | Working Pressure(Mpa) | Rated Flow(L/Min) | Working Rate(Area/H) |
| FFT-300-6 | Mounted Type | 300 | ≥40 | 6000 | 0.8-1.0 | 60-80 | 20 |
| FFT-300-8 | Mounted Type | 300 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-400-8 | Mounted Type | 400 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-8 | Mounted Type | 500 | ≥50 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-10 | Mounted Type | 500 | ≥50 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-500-12 | Mounted Type | 500 | ≥50 | 12000 | 0.8-1.0 | 80-100 | 35 |
| FFT-600-10 | Mounted Type | 600 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-10 | Mounted Type | 800 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-12 | Mounted Type | 800 | ≥60 | 12000 | 0.8-1.0 | 80-100 | 35 |

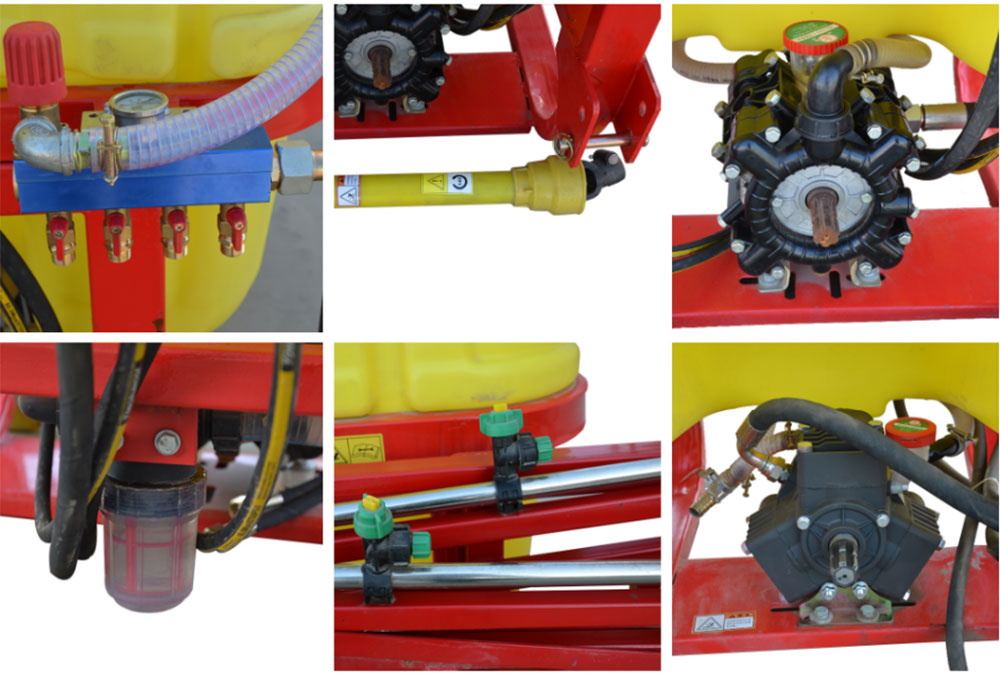

1.5mm thickness stainless steel boom body
Frame, blower and other Iron components are Spray-painted
Clean water hand wash safety tank
External tank level sight gauge
Hinged tank lids with strainer baskets
In tank chemical mixer
Branded diaphragm pump
Large, easy-to-access suction strainer
Imported fan spray nozzle, atomization, anti-drift
Standard PTO shaft with cover
• Manual boom sprayer perfect for spraying on large areas.
• Provides better coverage and accuracy as it runs closer to the land, hence less likely to be affected by wind.
• Spraying is easier to track.
• Ability to spray a large area in fraction of time.
• Cost-saving and time-saving.
• Especially useful in areas more prone to wind, as it reduces chemical drift.
