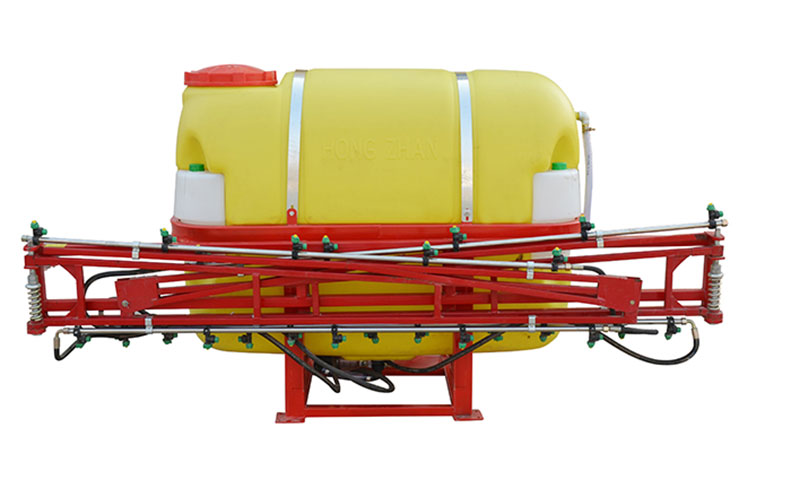

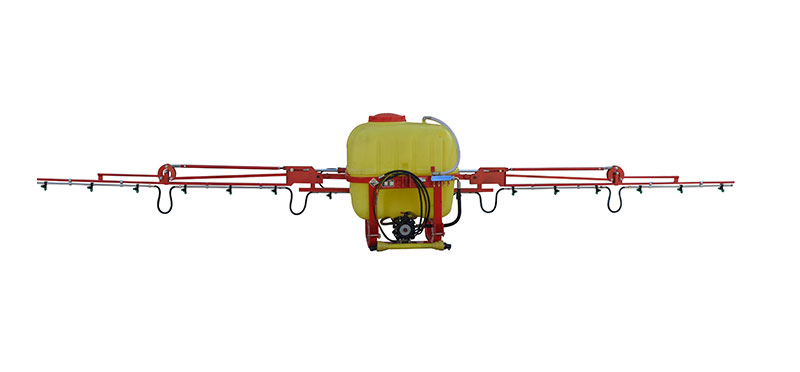

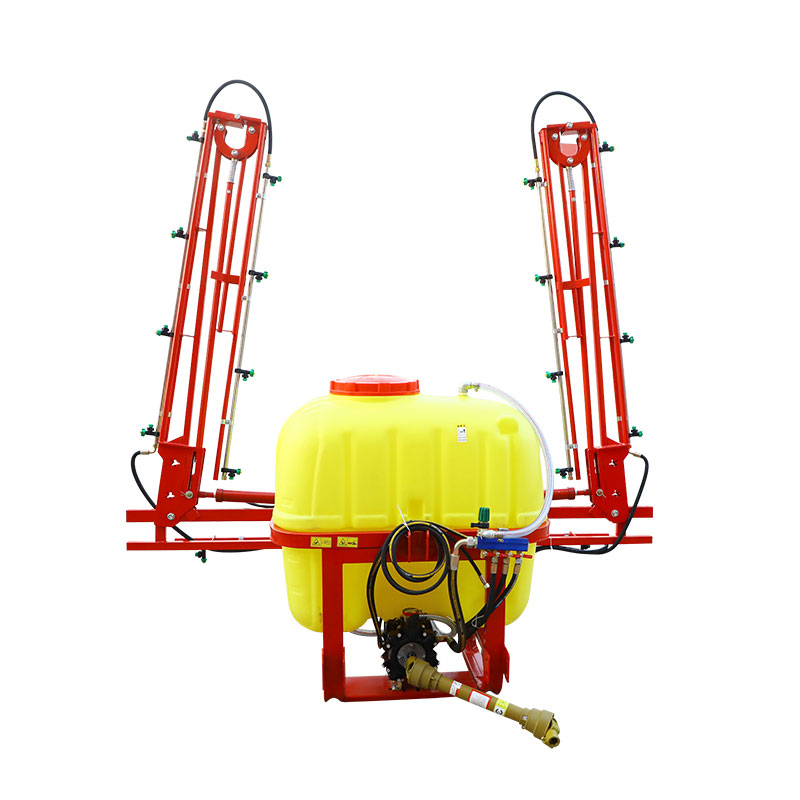

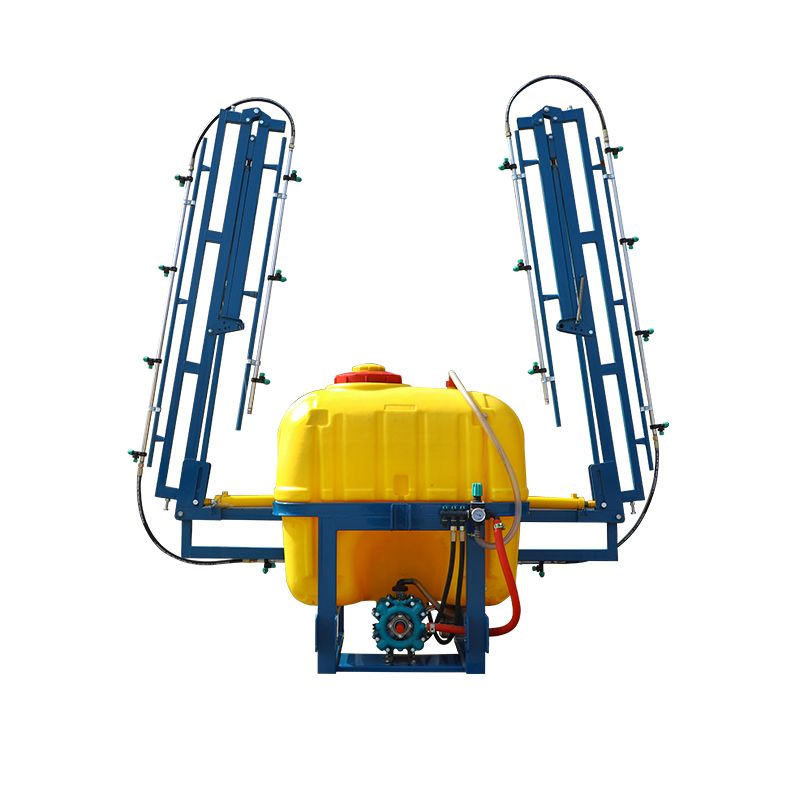

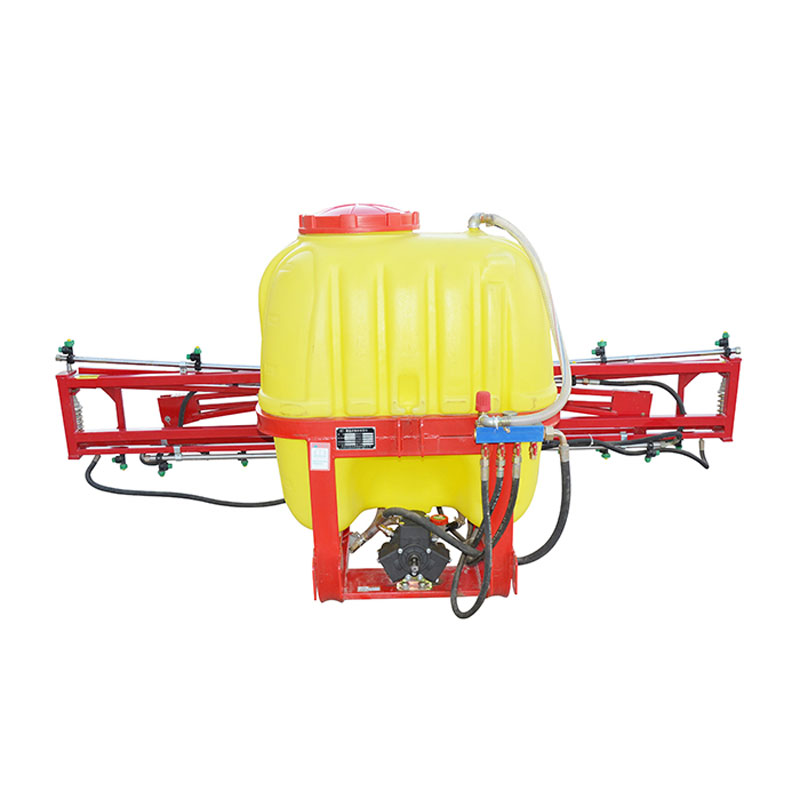

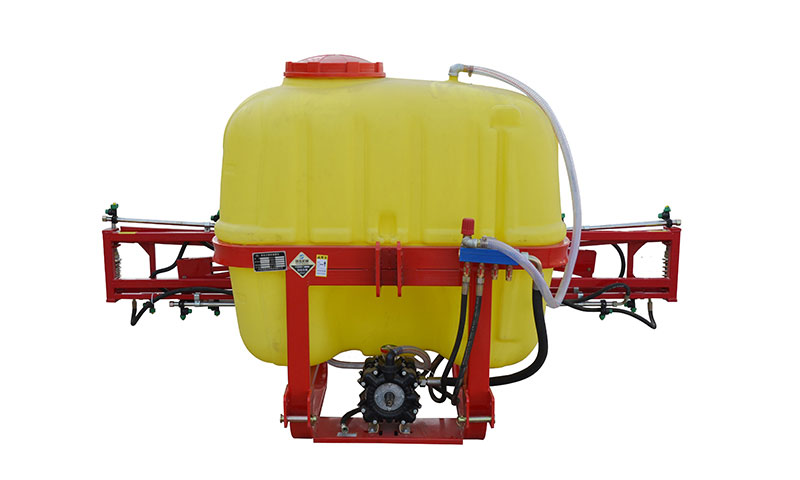

The following is an introduction to Broadcast Sprayer, I hope to help you better understand it. It is at the joint of the anti scratch hydraulic spray bar, there is a thickened spray bar equipped with a four cylinder 4160 pump, which has a very large atomization line. It uses a four way water distributor, which is easy to operate and efficient.
| Model | Structure | Max Capacity(L) | Matched Power(HP) | Spray Rod Length(MM) | Working Pressure(Mpa) | Rated Flow(L/Min) | Working Rate(Area/H) |
| FFT-300-6 | Mounted Type | 300 | ≥40 | 6000 | 0.8-1.0 | 60-80 | 20 |
| FFT-300-8 | Mounted Type | 300 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-400-8 | Mounted Type | 400 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-8 | Mounted Type | 500 | ≥50 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-10 | Mounted Type | 500 | ≥50 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-500-12 | Mounted Type | 500 | ≥50 | 12000 | 0.8-1.0 | 80-100 | 35 |
| FFT-600-10 | Mounted Type | 600 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-10 | Mounted Type | 800 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-12 | Mounted Type | 800 | ≥60 | 12000 | 0.8-1.0 | 80-100 | 35 |
Different tank capacity for the boom sprayer. There are 400L, 500L, 600L, 800L, 1000L and 1200L available.
Note: The different tank capacity in different weight, so need different tractor horse power.
Available working width: 8m, 10m, 12m, 18m, 22m, 24m.
Note: The working rate depend on the different working width.
1.Broadcast sprayer can Spraying pesticides to prevent and control pests and diseases in fields, orchards, flower nurseries, vegetable greenhouses, tea gardens, lawns, as well as pumping and sprinkler irrigation;
2.Public places, garbage disposal areas, and large-scale disinfection and epidemic prevention after natural disasters;
3.Cleaning vehicles, venues, and other related operations.
If you have any questions about broadcast sprayer, welcome to contact us!
