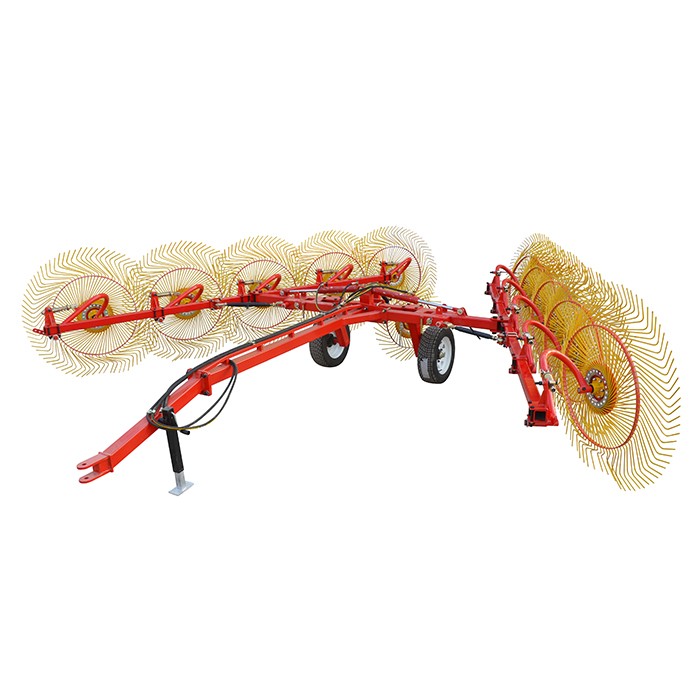

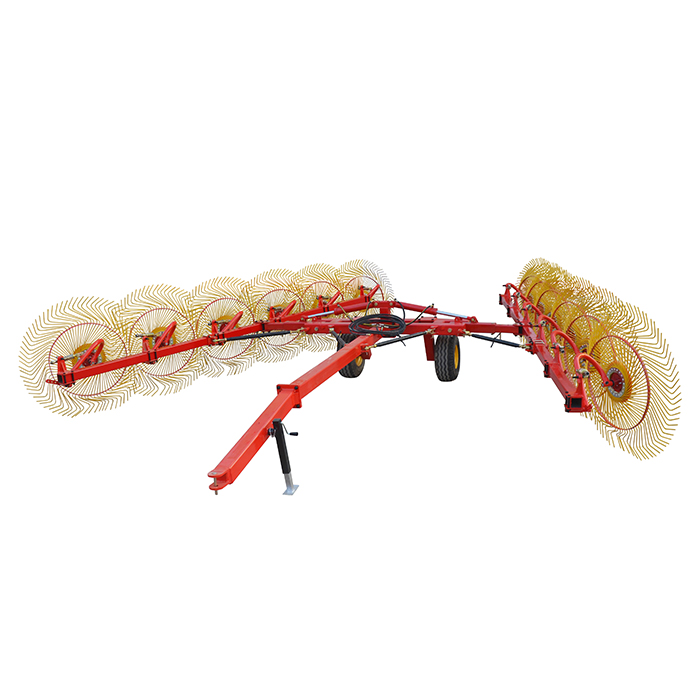

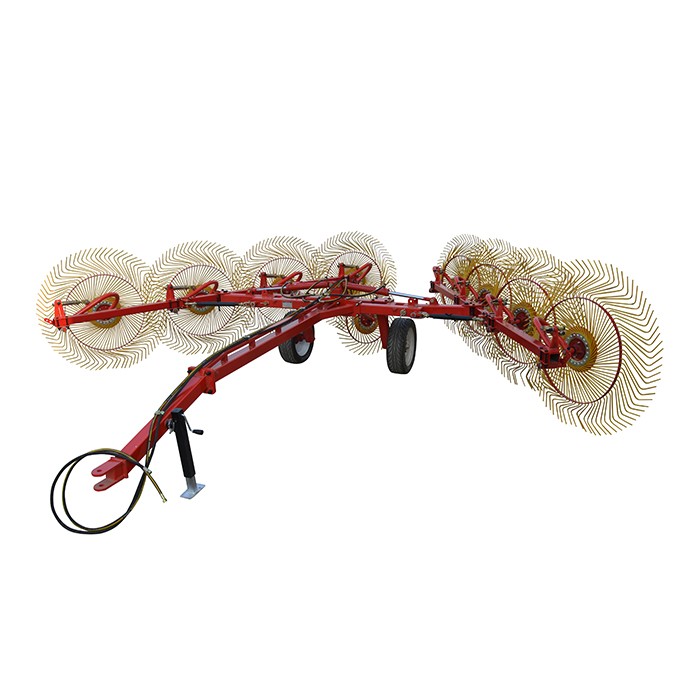

Farm Hay Rake for Tractor is a machine that is specialized in handling hay with high speed and efficiency. Its overall structural design is simple and can be operated normally with a few adjustments. The cost-effective ground drive device makes operation simpler and cheaper.
Each rake can be suspended with adjustable springs, applying innovative designs such as compression springs and connecting rod pressure systems. The pressure of the machine can also be adjusted according to the actual conditions of the crop and field, in order to get a cleaner and more efficient raking effect. At the same time, its reliability is also improved, and there are no chains or springs in a tensioned state, so looseness or failure is avoided. The rake wheel arm is a specially designed curved structure that provides more space for hay to move along the rake wheel without piling up, and finally forms a smooth and uniform haystack.
Specification
Different model, different specification, you can choose a suitable wheel rake as your need.
|
Model |
9L 6.0-8 |
9L 6.5-10 |
9L 7.3-12 |
9L 6.5-10 H |
|
Number of Wheel |
8 | 10 | 12 | 10 |
|
Raking Width(M) |
6 | 6.5 | 7.3 | 6.5 |
|
Windrow Width |
1 | 1 | 1 | 1 |
|
Wheel Diameter (cm) |
150 | 150 |
150 |
150 |
|
Dimension(MM) |
6100*6300*1500 |
6600*6800*1500 |
7500*7600*1500 |
7500*7600*1500 |
|
Weight(KG) |
860 |
980 |
1150 |
1650 |
|
Matched Power(HP) |
30-70 |
40-80 |
55-90 |
100-180 |
|
Working Rate(Area/H) |
30-40 |
35-45 |
40-50 |
50-70 |
|
Hydraulic Hitch jack |
Standard |
|||
|
Center kicker wheel |
Optional |
|||
Farm Hay Rake for Tractor is used for hay processing. In specific forage planting, animal husbandry and other industries, with the continuous innovation of technology, it may achieve breakthroughs in intelligence and adaptability in the future. For example, the equipment can automatically adjust the raking height to adapt to grasslands with different growth conditions, or develop lighter but sturdy and durable materials to reduce energy consumption while increasing service life. This will further expand its application scenarios and market demand.
If you have any questions about farm hay rake for tractor, welcome to contact us!
Farming First Agricultural Machinery warmly welcome you become one of our wholesalers and long term cooperation partners, we are the factory for you from China.
