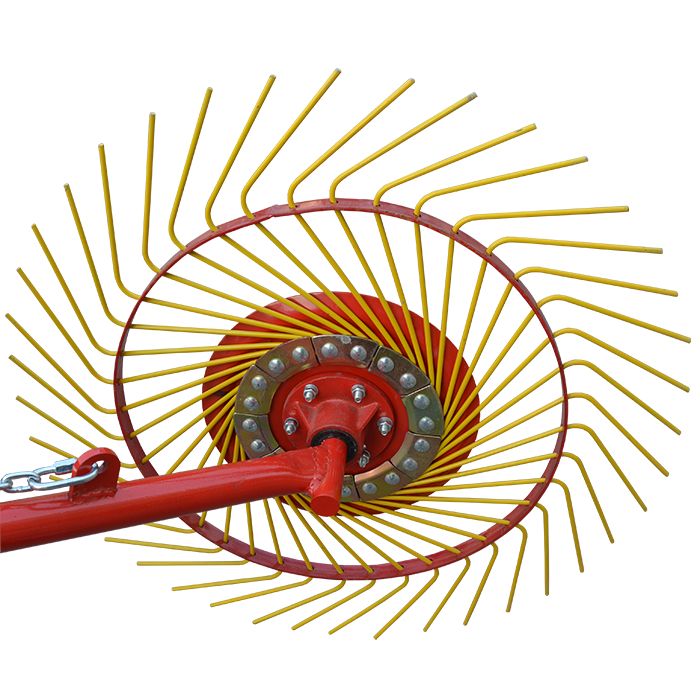

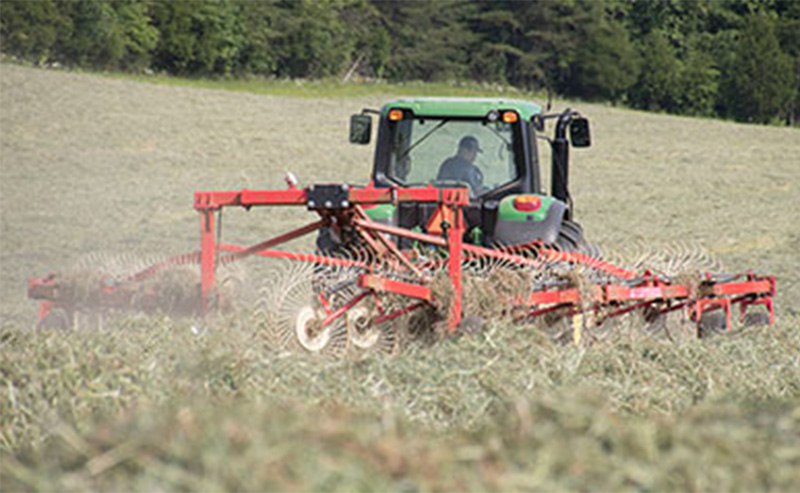

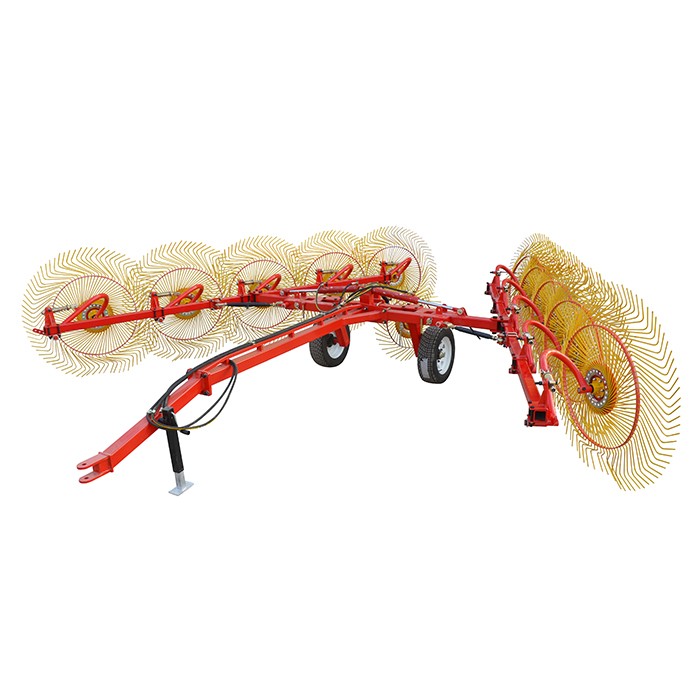

Our Field Hay Wheel Rake has multiple uses, it can be used to sort crops into strips, and it can also cut hay for subsequent collection. It is recommended to install the machine on the right side of the tractor, equipped with a three-point suspension device, and the gear rod is made of 65Mn spring steel, which is a durable material with a longer service life.
Its overall structural design is simple, and it can be operated and used with a small amount of adjustment during installation, and it rarely fails, is relatively simple to maintain, has good dynamic performance, is more efficient, and saves time and cost.
Specification
Different model, different specification, you can choose a suitable field hay rake as your need.
|
Model |
9L 6.0-8 |
9L 6.5-10 |
9L 7.3-12 |
9L 6.5-10 H |
|
Number of Wheel |
8 | 10 | 12 | 10 |
|
Raking Width(M) |
6 | 6.5 | 7.3 | 6.5 |
|
Windrow Width |
1 | 1 | 1 | 1 |
|
Wheel Diameter (cm) |
150 | 150 |
150 |
150 |
|
Dimension(MM) |
6100*6300*1500 |
6600*6800*1500 |
7500*7600*1500 |
7500*7600*1500 |
|
Weight(KG) |
860 |
980 |
1150 |
1650 |
|
Matched Power(HP) |
30-70 |
40-80 |
55-90 |
100-180 |
|
Working Rate(Area/H) |
30-40 |
35-45 |
40-50 |
50-70 |
|
Hydraulic Hitch jack |
Standard |
|||
|
Center kicker wheel |
Optional |
|||
Preparation: Before use, check all parts of the field hay wheel rake and check whether the rake teeth of the wheel rake are damaged or deformed. Connect it to the traction vehicle correctly and adjust the height of the equipment.
Operation process: Start the traction vehicle, and generally control the speed to 3-5 kilometers per hour.
Adjustment and maintenance: After the operation is completed, clean up the debris on the rake teeth in time, lubricate the rotating parts, and check the bolts and other connectors to ensure that the equipment can be used normally next time.
