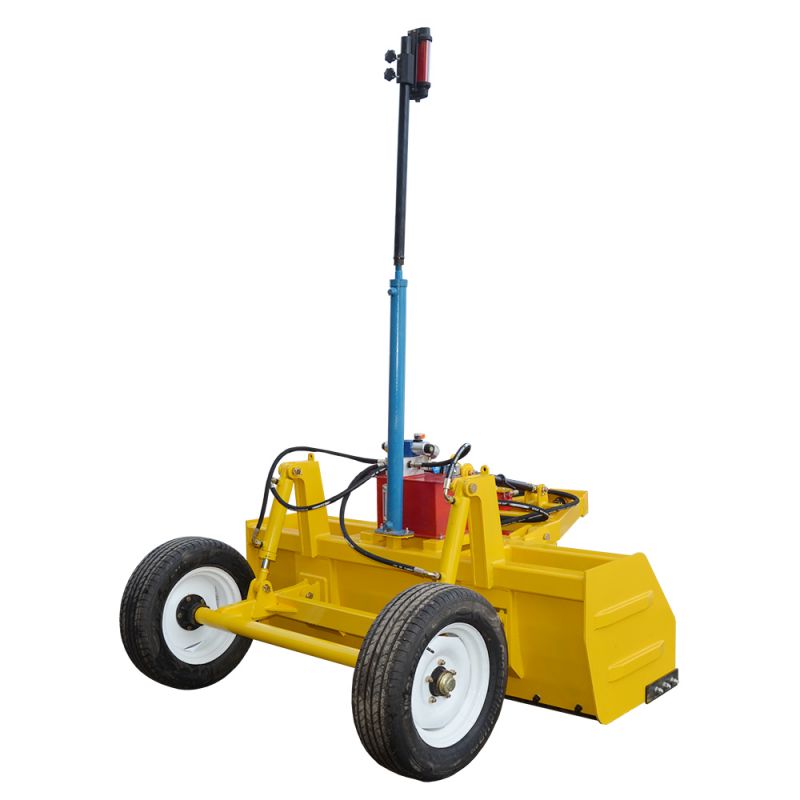

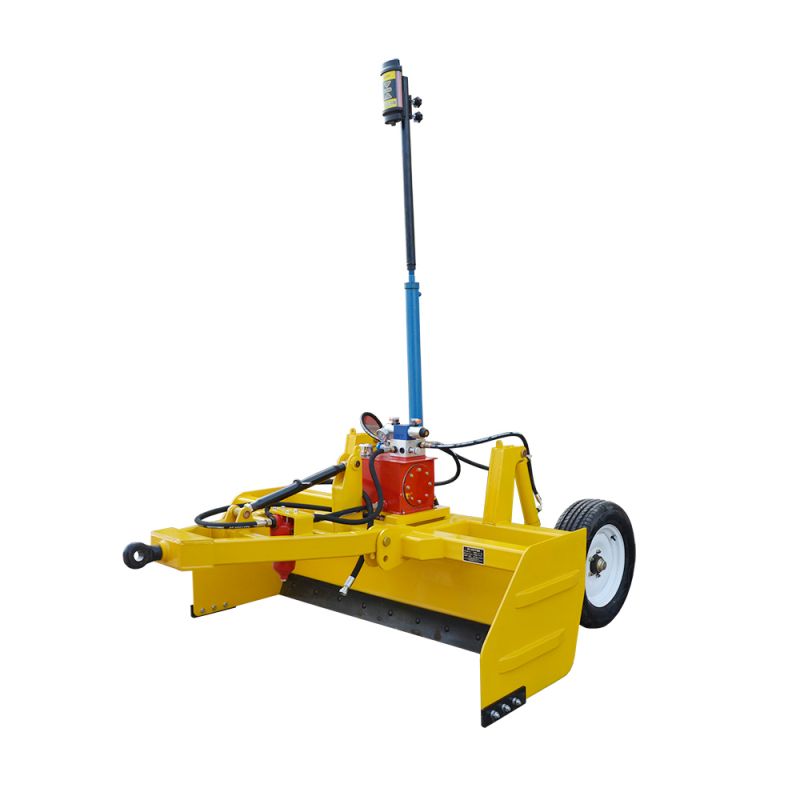

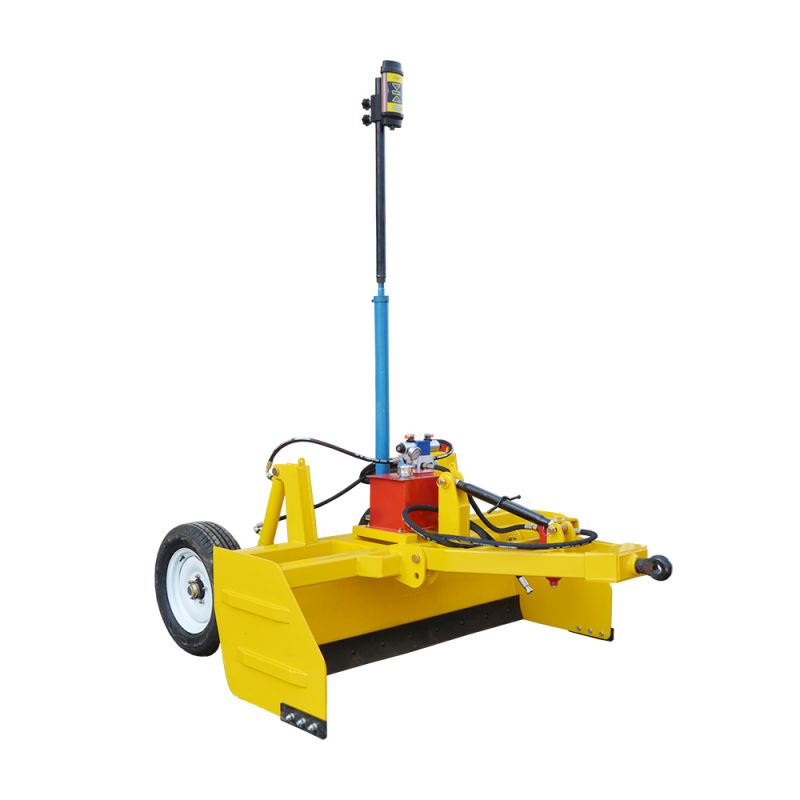

High-quality Laser Land Leveler

The Laser Land Leveler is a cutting-edge precision instrument designed to flatten terrain with unmatched accuracy, widely used in agriculture, construction, and landscaping. It eliminates manual errors, boosts operational efficiency, and ensures uniform land surfaces—critical for optimal crop yield, stable building foundations, and smooth project execution.

Core Components

- Laser Transmitter: Emits a high-intensity, horizontal laser beam (typically 635nm red or 520nm green) that serves as an invisible "level reference line," covering working ranges up to 1,000 meters.

- Receiver: Mounted on the leveler’s blade or tractor, it detects the laser signal, converts it into electrical data, and sends real-time feedback to the controller.

- Controller: The "brain" of the system, processes receiver data, and automatically adjusts the hydraulic system to keep the blade aligned with the laser reference.

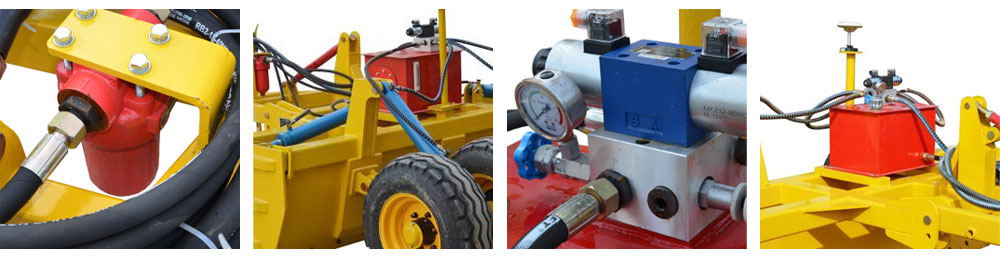

- Hydraulic Execution System: Includes cylinders and hoses that respond to the controller’s commands, lifting or lowering the leveling blade to reshape the terrain.

- Leveling Blade: A durable, high-strength steel plate (available in 2–4m widths) that scrapes, spreads, and compacts soil or gravel to the target level.

Operation Method

1. Set up the laser transmitter on a stable tripod at a high, unobstructed location within the work area, calibrating it to the desired horizontal plane.

2. Mount the receiver on the leveler (attached to a tractor or loader) and pair it with the controller via wireless or wired connection.

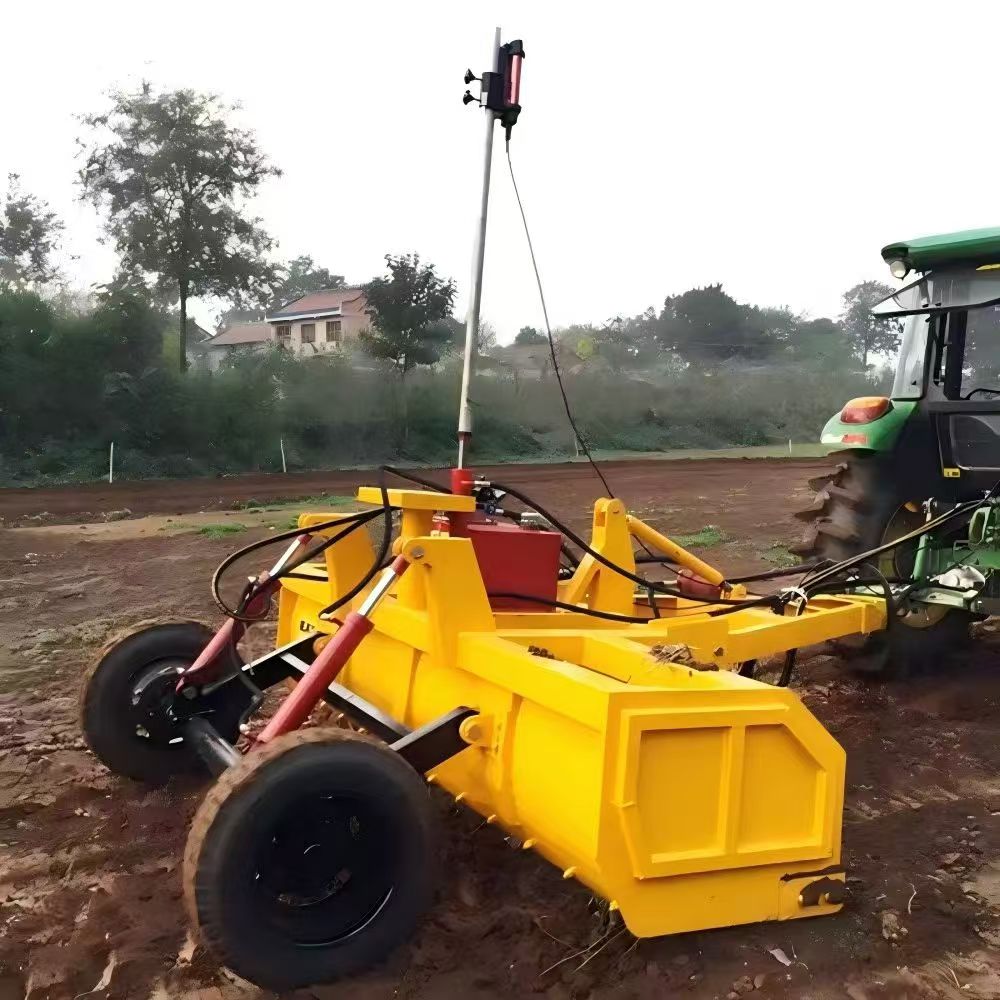

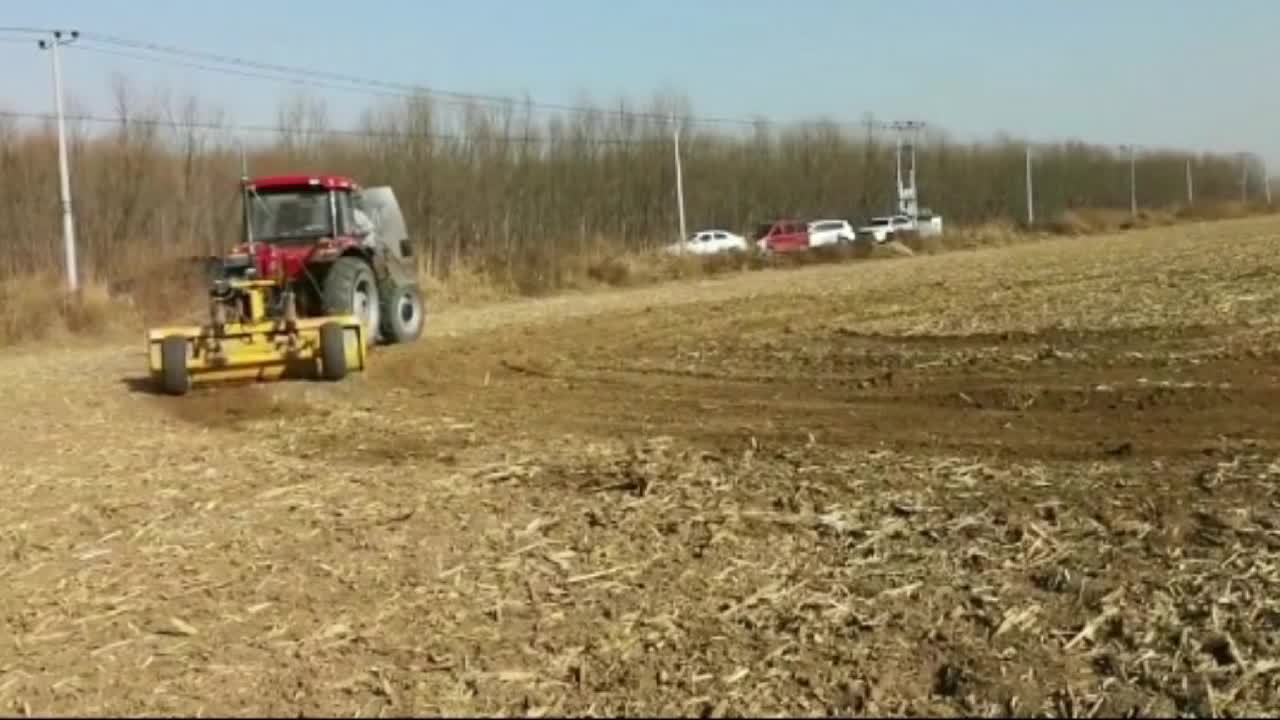

3. Start the tractor and move it across the terrain; the receiver continuously tracks the laser beam. If the blade deviates from the reference, the controller triggers the hydraulic system instantly.

4. Adjust the blade’s height manually via the controller’s interface if finer tweaks are needed, and repeat passes until the entire area meets the precision standard.

This tool reduces labor by 50% and cuts project time by 30%, making it indispensable for modern land preparation.
