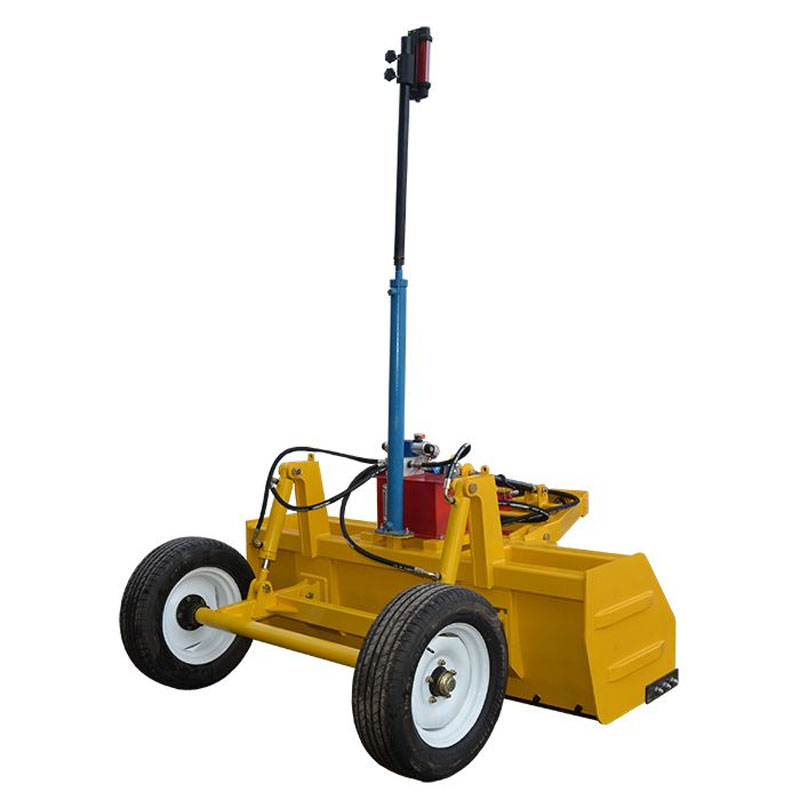

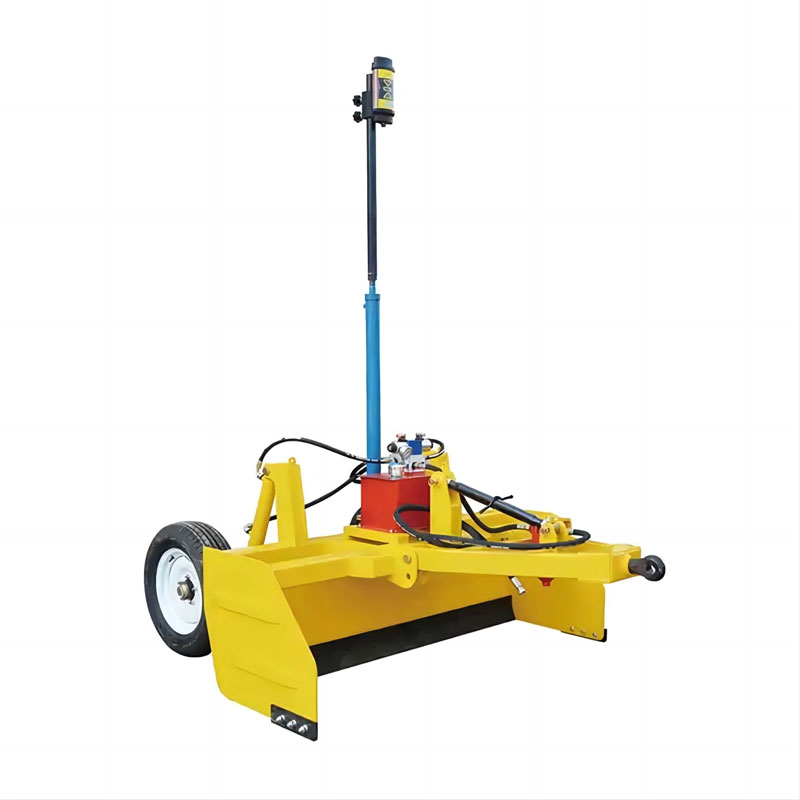

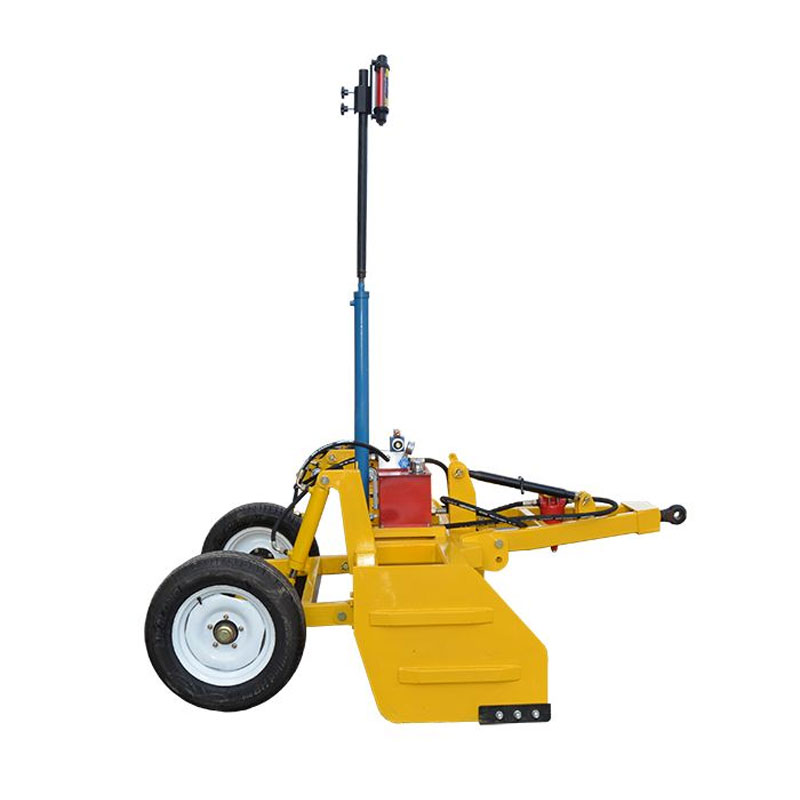

Hydraulic Laser Land Leveler

Advantages

The hydraulic laser land leveler shows great performance. In the field of agriculture, it can make the land leveling reach centimeter-level precision, greatly improve the uniformity of irrigation, reduce the waste of water resources, create a better growing environment for crops, and help increase production and income. In road construction, site leveling and other engineering scenarios, it also performs well, not only significantly shorten the construction cycle, reduce labor costs, but also effectively guarantee the quality of the project. In addition, the hydraulic laser grader is easy to operate and highly stable, and can be adapted to different terrains and complex working conditions to meet diversified operational needs.
Whether it is a vast farmland or a large construction site, hydraulic laser graders provide strong support for improving production efficiency and promoting industrial development by virtue of advanced technology and precise operation.

Working Principle

Hydraulic laser land leveler combine laser measurement technology with hydraulic control technology to achieve high precision ground leveling. The laser transmitter emits a 360° rotating laser beam that creates a reference plane over the work area. The laser receiver, mounted on the scraper or other working part of the grader, continuously receives the laser signal and transmits it to the control system. When there is a height difference between the scraper and the reference plane, the control system quickly calculates the deviation and sends a command to the hydraulic system. The hydraulic system adjusts the flow direction and pressure of the hydraulic oil to drive the hydraulic cylinder to expand and contract, changing the height and angle of the scraper in real time. In this process, the scraper will continue to cut or backfill the soil, so that the working surface is consistent with the laser reference plane, thus realizing efficient and accurate land leveling operations.

Easy to Set Up and Operate

Easy to install or uninstall
The function of GPS positioning & GSM communication is optional
LCD display screen for displaying of real time altitude difference
The tracking working trajectory, auto area calculating and remote controlling can be made after the data was uploaded to server (optional function)
Double laser receiver is supported and making grading more precisely and efficiently
