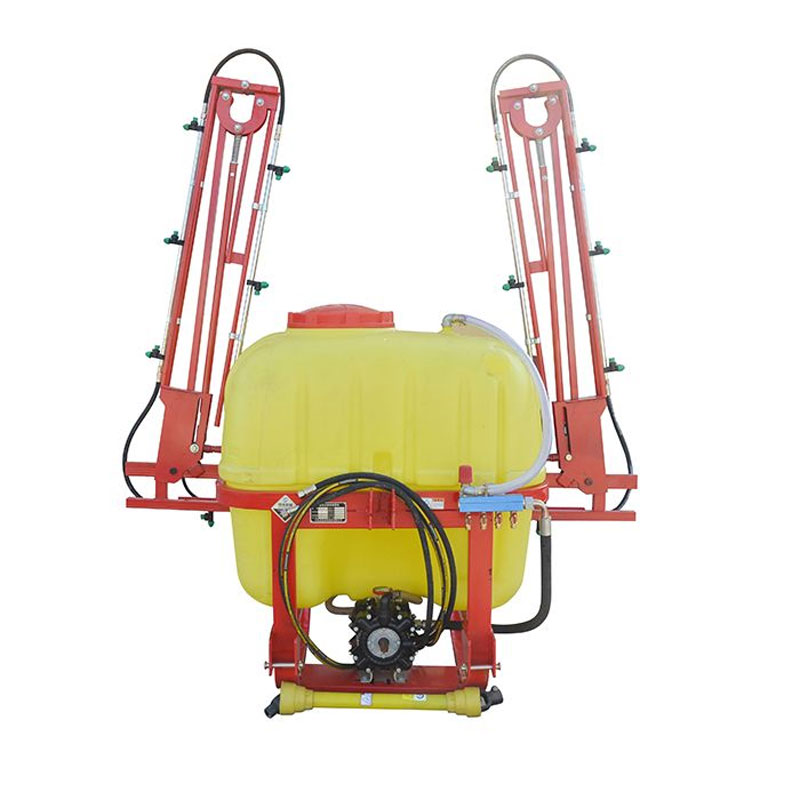

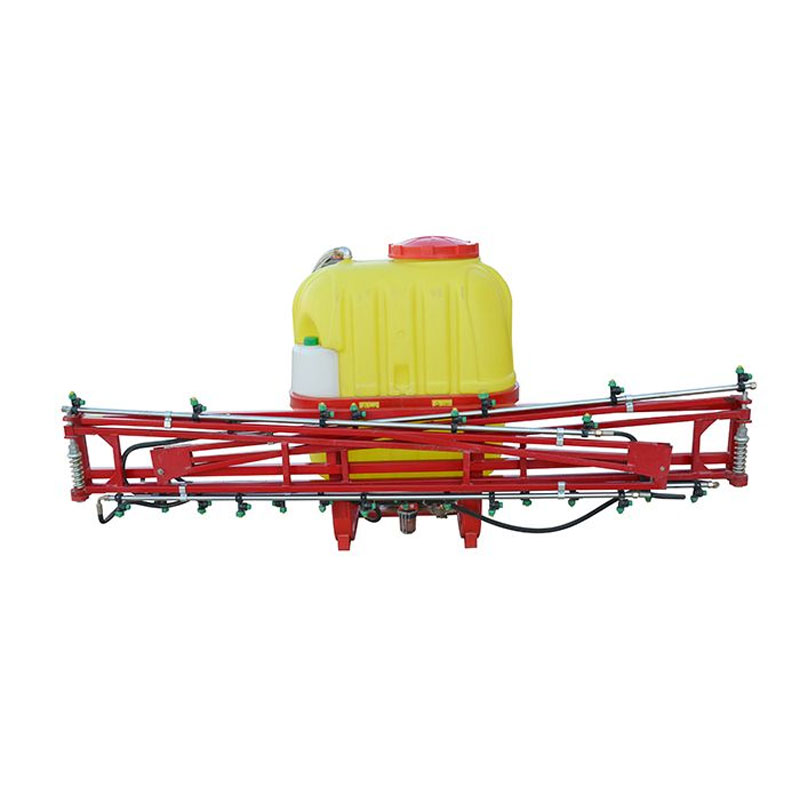

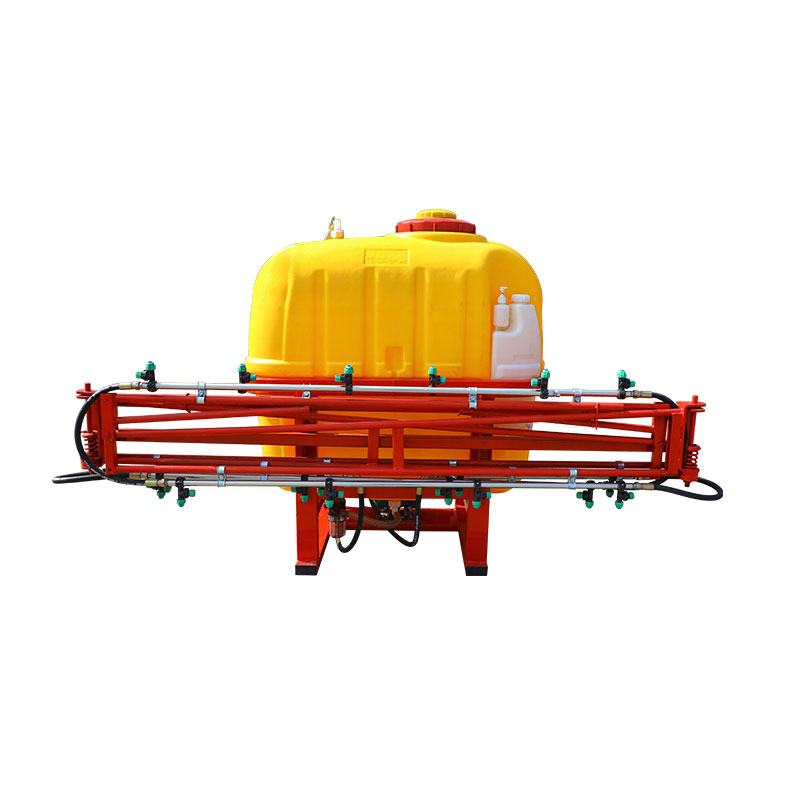

With the characteristics of large spraying width, great capacity and high efficiency, the tractor operated boom sprayer is the ideal tool for small and medium tractors. With 3 cylinder plunger pump or gear pump, it has high working pressure, large flow and is easy to be operated and maintained. This sprayer is generally used to prevent and cure plant diseases and insect pests in gardens or in the fields of soybean, wheat, corn, rice, cotton or potatoes.
As a manufacturer and supplier of tractor operated boom sprayer, there are many different models available for your choice, please kindly check the below detailed parameters of tractor mounted boom sprayer:
| Model | Structure | Max Capacity(L) | Matched Power(HP) | Spray Rod Length(MM) | Working Pressure(Mpa) | Rated Flow(L/Min) | Working Rate(Area/H) |
| FFT-300-6 | Mounted Type | 300 | ≥40 | 6000 | 0.8-1.0 | 60-80 | 20 |
| FFT-300-8 | Mounted Type | 300 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-400-8 | Mounted Type | 400 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-8 | Mounted Type | 500 | ≥50 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-10 | Mounted Type | 500 | ≥50 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-500-12 | Mounted Type | 500 | ≥50 | 12000 | 0.8-1.0 | 80-100 | 35 |
| FFT-600-10 | Mounted Type | 600 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-10 | Mounted Type | 800 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-12 | Mounted Type | 800 | ≥60 | 12000 | 0.8-1.0 | 80-100 | 35 |

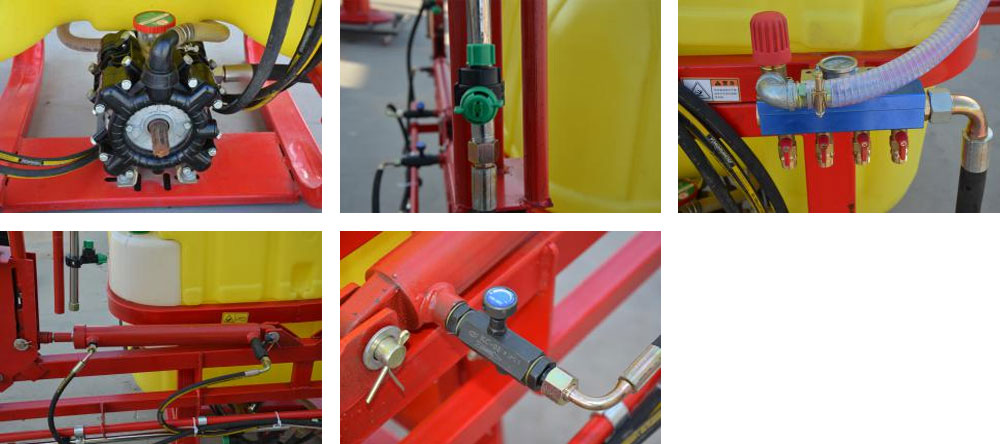

1. 3 points tractor mounted: Directly mounted, easy to using.
2. PTO shaft: PTO Shaft with plastic cover.
3. Diaphragm pump: High flow, high pressure, corrosion-resistant.
4. Water manifold: Water Three valve manifold plastic and alloy material available, internal jet agitator covered.
5. Line strainers: Self-cleaning pressure line strainers
6. Stainless steel boom: Corrosion-resistant.
7. High quality plastic nozzles: Atomization, anti-drift.
Our tractor operated boom sprayer is fitted with tractor 4wd and with rear PTO and perform farm crop’s spraying. It is mainly used for farm crops on big farmland like crop, wheat, bean to spray herbicide, pesticide, liquid manure and so on. It can also connect with the spray gun to clean and disinfect farm tools,various vehicles and barn.
If you have any questions about tractor operated boom sprayer, welcome to contact us!
