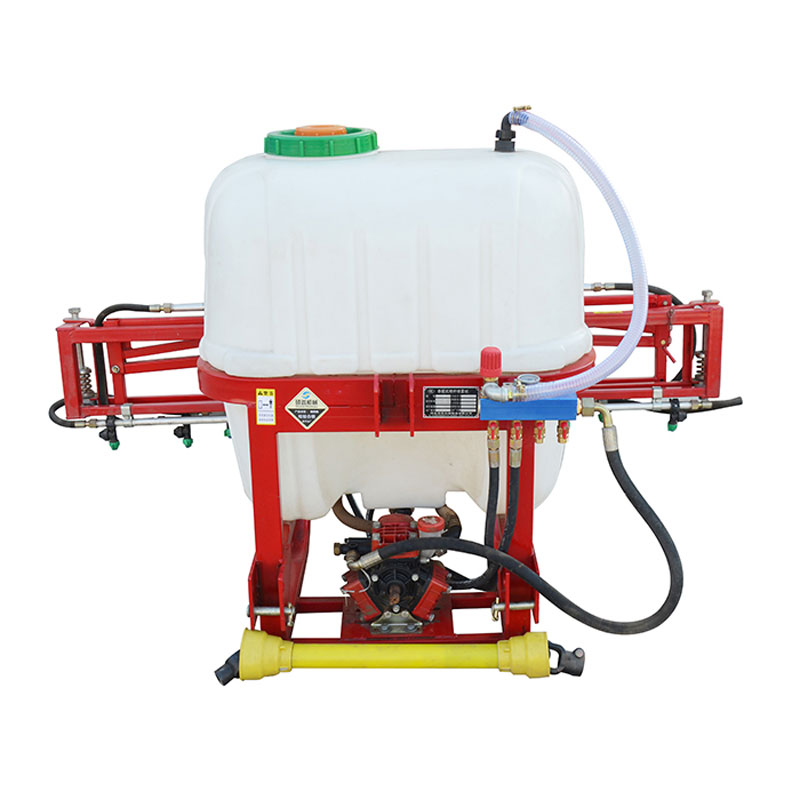

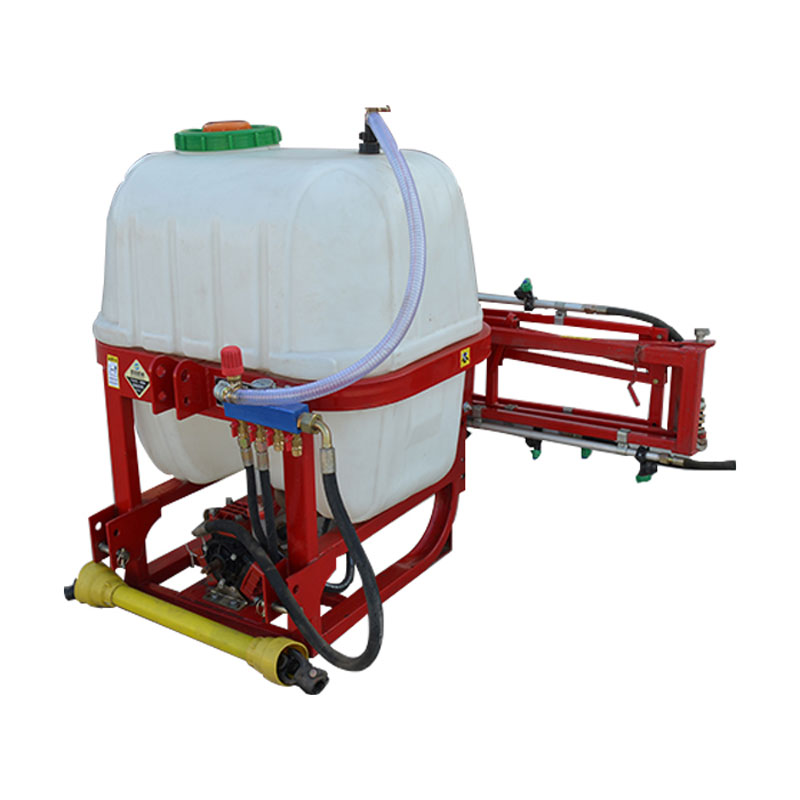

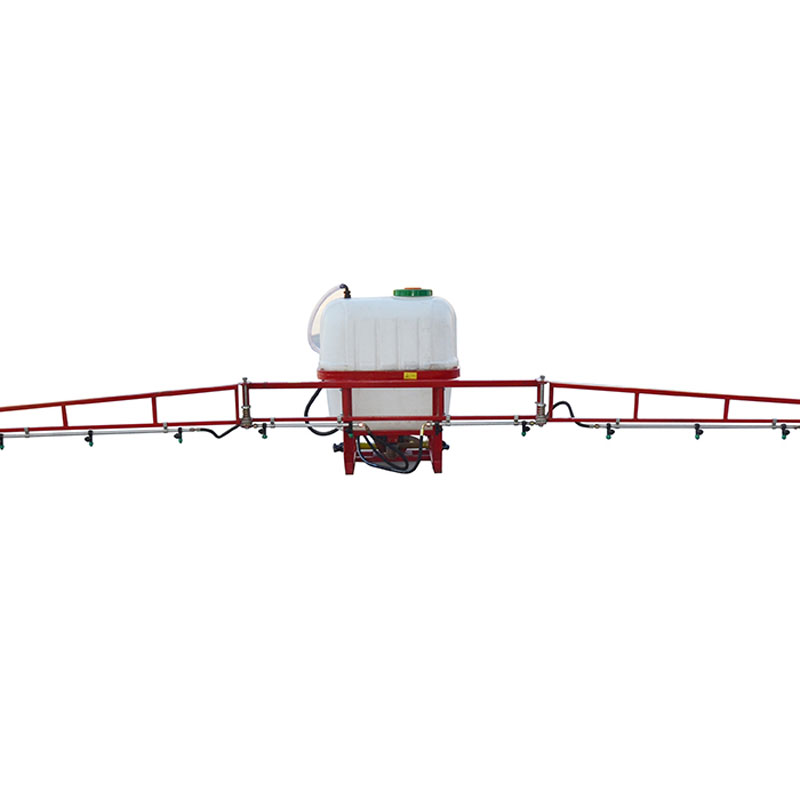

The trailer mounted sprayer is a new kind of sprayer, which is composed of a barrel and a sprayer rod. The trailer mounted sprayer height is adjustable, the sprayer rod height is optional, and the sprayer rod can be folded and the wheel distance is adjustable.
Flexible and easy to operate, the trailer mounted sprayer is suitable for
pest control, foliage fertilizer and herbicides on a variety of early-season
crops.
The pipeline of the sprayer is made of special anti-corrosion material with
excellent anti-corrosion performance.

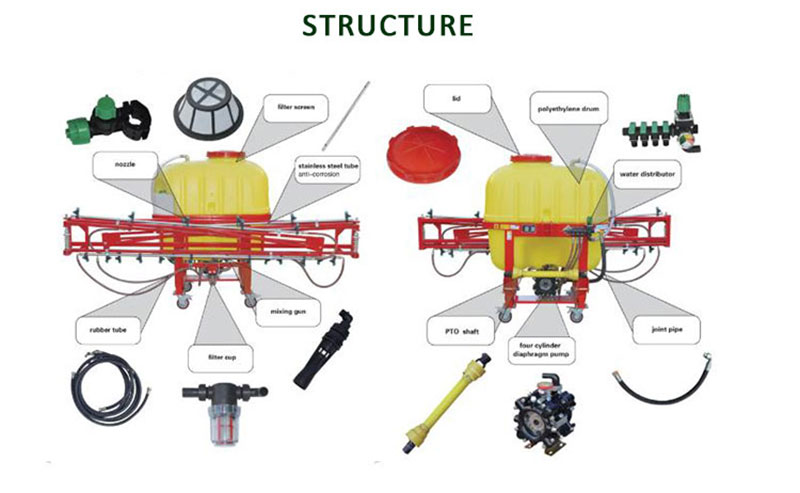

The hydraulic pump adopts double cylinder diaphragm pump, the working
pressure is stable and the spray is even. The spray rod height is
adjustable. The distribution valve arrangement is advantageous to the
tractor driver operation.
The spraying part adopts anti-dripping nozzle to avoid the leakage of
residual liquid medicine in the pipeline.
There are different tank capacity and working width available for the trailer mounted sprayer.
| Model | Structure | Max Capacity(L) | Matched Power(HP) | Spray Rod Length(MM) | Working Pressure(Mpa) | Rated Flow(L/Min) | Working Rate(Area/H) |
| FFT-300-6 | Mounted Type | 300 | ≥40 | 6000 | 0.8-1.0 | 60-80 | 20 |
| FFT-300-8 | Mounted Type | 300 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-400-8 | Mounted Type | 400 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-8 | Mounted Type | 500 | ≥50 | 8000 | 0.8-1.0 | 60-80 | 20 |
| FFT-500-10 | Mounted Type | 500 | ≥50 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-500-12 | Mounted Type | 500 | ≥50 | 12000 | 0.8-1.0 | 80-100 | 35 |
| FFT-600-10 | Mounted Type | 600 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-10 | Mounted Type | 800 | ≥60 | 10000 | 0.8-1.0 | 80-100 | 35 |
| FFT-800-12 | Mounted Type | 800 | ≥60 | 12000 | 0.8-1.0 | 80-100 | 35 |
Agriculture: corn, soybean, wheat, rice, cotton, peanuts, vegetables, greenhouses, fruit trees, medicinal herbs.
Forestry: Trees, lawns, gardens, nurseries, insecticidal water, road cleaning.
Disinfection: residential areas, urban sanitation, freight cars, farms, insecticides, mosquito control, disinfection, sewage sterilization.
With years of experience in production farm machinery, FASTMA® can supply a wide range of machinery. We have complete machinery for the farm, such as sprayer, fertilizer spreader, hay mower, plough, ect.
High quality tractor boom sprayer can meet many applications, if you need, please get our online timely service about farm machinery.
If you have any questions about trailer mounted sprayer, welcome to contact us!
