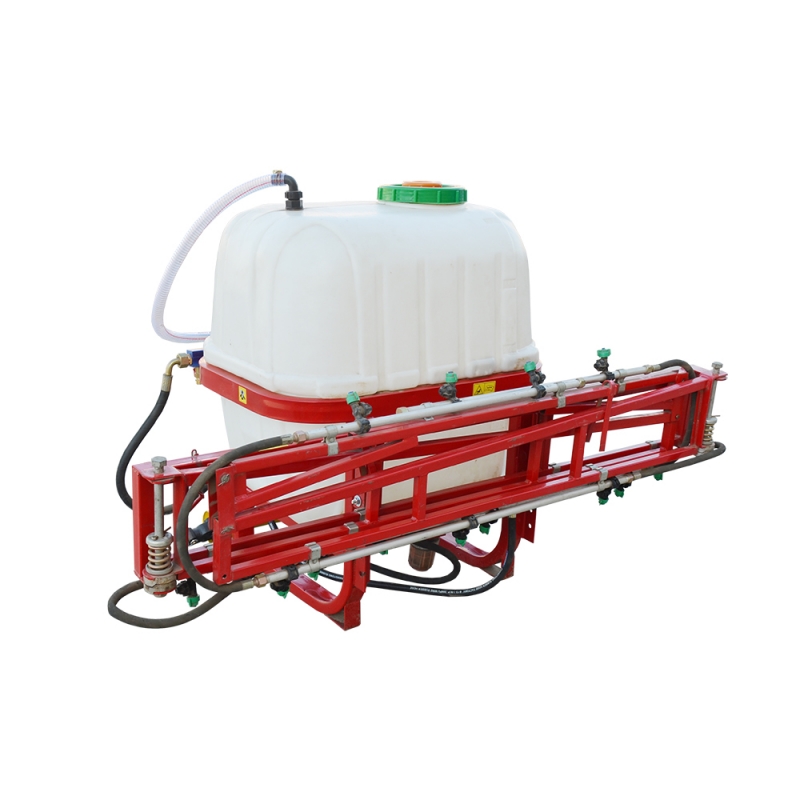

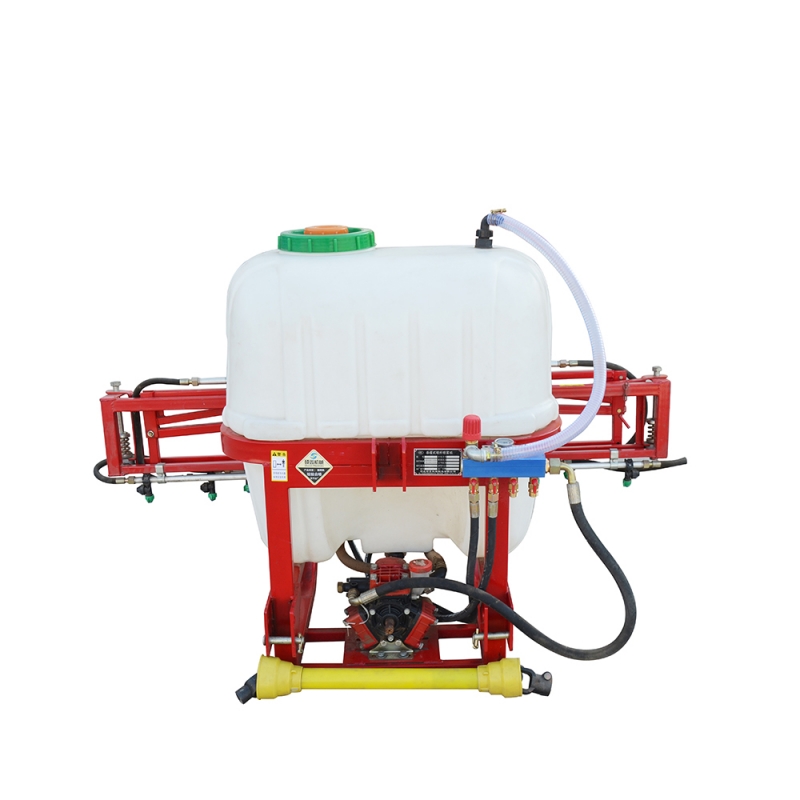

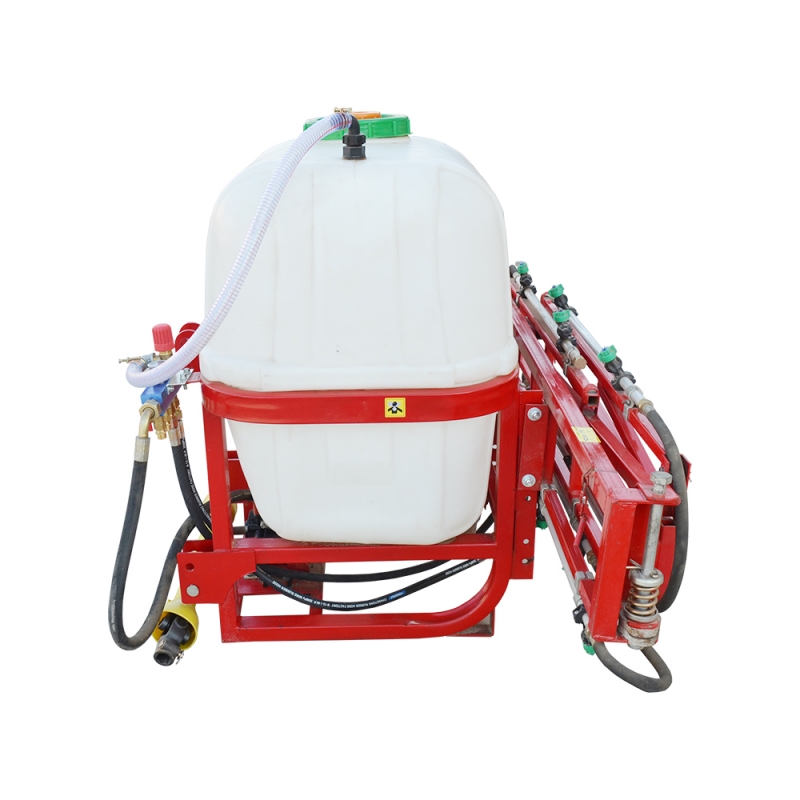

3 Point Hitch Sprayer consists of a 3-point hitch bracket, a corrosion-resistant liquid tank, a high-pressure pump, adjustable spray nozzles, and a control panel. The 3-point hitch bracket is key for connecting tractors tightly.
When 3 Point Hitch Sprayer operates, the tractor’s power takes the high-pressure pump to work. The pump draws liquid from the tank, pushes it through hoses to nozzles, and the control panel adjusts pressure for even spraying of 3 Point Hitch Sprayer.
|
Model |
Structure |
Dimension(MM) |
Max Capacity(L) |
Matched Power(HP) |
Spray Rod Length(MM) |
Working Pressure(Mpa) |
Rated Flow(L/Min) |
Working Rate(Area/H) |
|
3WPX-400-8 |
Mounted Type |
1880*1140*1240 |
400 |
≥40 |
8000 |
0.8-1.0 |
60-80 |
20 |
|
3WPX-500-12 |
Mounted Type |
2700*1100*1300 |
500 |
≥40 |
12000 |
0.8-1.0 |
60-80 |
35 |
|
3WPX-600-8 |
Mounted Type |
2200*1190*2300 |
600 |
≥50 |
8000 |
0.8-1.0 |
80-100 |
20 |
|
3WPX-600-12 |
Mounted Type |
2700*1100*1440 |
600 |
≥50 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPXY-600-12 |
Mounted Type |
2700*3300*1400 |
600 |
≥50 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPX-800-12 |
Mounted Type |
2700*1140*1500 |
800 |
≥60 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPX-800-18A |
Mounted Type |
3000*3000*1500 |
800 |
≥60 |
18000 |
0.8-1.0 |
190 |
45 |
|
3WPXZ-800-18 |
Mounted Type |
3100*3100*1800 |
800 |
≥60 |
18000 |
0.8-1.0 |
190 |
45 |
|
3WPX-1000-12 |
Mounted Type |
2700*1000*1530 |
1000 |
≥60 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPX-1000-18 |
Mounted Type |
3100*3300*2100 |
1000 |
≥80 |
18000 |
0.8-1.0 |
190 |
45 |
|
3WPX-1200-22 |
Mounted Type |
4200*3600*2400 |
1200 |
≥80 |
22000 |
0.8-1.0 |
215 |
55 |
|
3WPX-1200-24 |
Mounted Type |
2400*2100*2900 |
1200 |
≥80 |
24000 |
0.8-1.0 |
215 |
55 |
3 Point Hitch Sprayer’s standard 3-point hitch bracket fits most medium and small tractors. Farmers don’t need extra adapters, so 3 Point Hitch Sprayer can be installed quickly to start farm work in a short time.
3 Point Hitch Sprayer is equipped with multiple adjustable nozzles that cover a wide range. The high-pressure pump ensures consistent liquid output, making 3 Point Hitch Sprayer spray every crop evenly without dead corners.
3 Point Hitch Sprayer has an intuitive control panel on the tractor. Farmers can adjust spray amount and pressure while driving, which reduces labor intensity and improves the operation accuracy of 3 Point Hitch Sprayer.
3 Point Hitch Sprayer uses thickened steel for the frame and food-grade plastic for the liquid tank. These materials resist rust and chemical corrosion, ensuring 3 Point Hitch Sprayer works stably for years.
3 Point Hitch Sprayer is suitable for watering vegetables, spraying pesticides on wheat, and fertilizing fruit trees. By replacing nozzles, 3 Point Hitch Sprayer adapts to different crops and farm tasks easily.
3 Point Hitch Sprayer has a simple structure with low maintenance costs. Its energy-saving pump consumes less fuel, and replacement parts of 3 Point Hitch Sprayer are affordable and easy to purchase.
