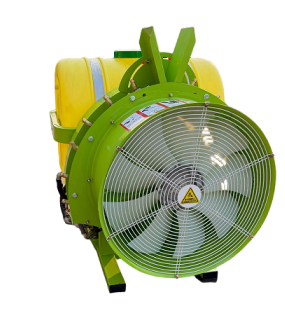

Customers with a need to purchase a 350L Orchard Sprayer are welcome to choose FASTMA®. This 350L Orchard Sprayer is designed for large-scale orch
The 350L Orchard Sprayer is designed for continuous operation in medium to large orchards. Its large capacity combined with a powerful wind-assisted system significantly reduces downtime for refilling.
1. 350L Large Capacity Tank: A single refill covers a longer working distance, greatly reducing the number of trips to refill and increasing daily working area;
2. Wind-Assisted Atomization Spraying: A powerful fan atomizes the pesticide solution and blows it precisely to all layers of the tree canopy, ensuring even coverage on inner and outer branches, reducing pesticide drift and waste;
3. Tractor PTO Drive: No additional power source is required; it can be used with a three-point hitch, compatible with mainstream medium and larger tractors.
This 350L Orchard Sprayer is reinforced in structure and material to handle large-capacity operations.
1. Thickened Corrosion-Resistant Tank: The 350L tank is made of PE/corrosion-resistant material and formed as a single unit, resisting corrosion from acidic and alkaline solutions and remaining deformation and leakage-free with long-term use.
2. Multi-Angle Adjustable Nozzle Assembly: The nozzle direction and spray volume can be independently adjusted, adapting to different orchard layouts with varying tree heights and row spacings.
3. Protective Metal Grille: A protective grille is added around the fan to prevent branches, leaves, and debris from being sucked in and damaging the impeller during operation.
4. Quick-Connect Interface and Fil
The 350L Orchard Sprayer is suitable for pest control operations in contiguous orchards of medium and large scale, with strong continuous working capability.
1. Large Fruit Plantations: Pest and disease control and foliar fertilizer spraying in contiguous orchards of apples, citrus, grapes, pears, peaches, etc.
2. Seedling and Economic Forest Bases: Large-area pest elimination operations in nurseries and economic forest plantations.
3. Farms and Agricultural Cooperatives: Unified operation scenarios for farms and cooperatives that need to complete large-area pesticide spraying tasks in a single day.
The daily maintenance points for large-capacity models are consistent with those of standard models. However, due to the larger size of the medicine tank, special attention should be paid to the following when cleaning and storing:
1. After each operation: Thoroughly flush the medicine tank, pipelines, nozzles, and filter with clean water to drain any residual medication and prevent crystallization and blockage.
2. Regular inspection: Check the fan blades, drive shaft, pipeline connections, and sealing gaskets. Replace any worn parts promptly.
3. Long-term storage: Empty the medicine tank and drain any remaining liquid in the pipelines. Store in a dry, well-ventilated area, avoiding direct sunlight to prevent tank aging.
1. The entire machine comes with a one-year warranty, during which after-sales support is provided for core components damaged non-artificially within the warranty period;
2. Long-term supply of consumables (such as print heads, seals, and filters) is offered to ensure continuous equipment operation;
3. Accompanying operation manuals and online technical guidance are provided to assist customers with installation, debugging, and fault troubleshooting.
