Power Transmission Shaft

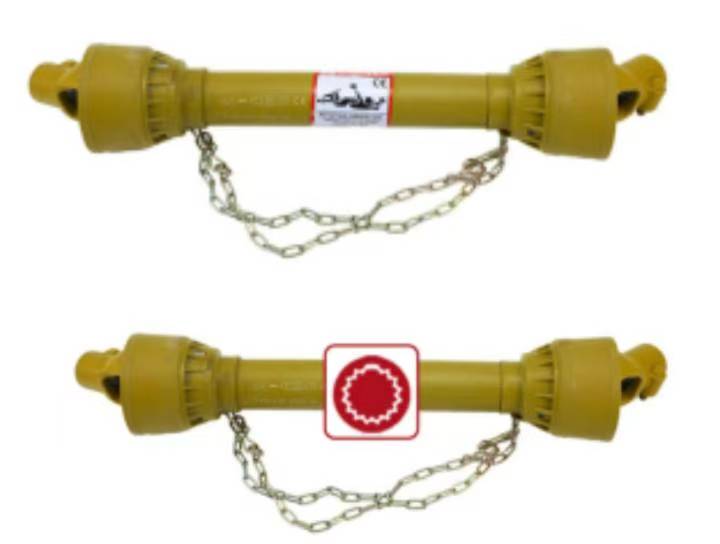

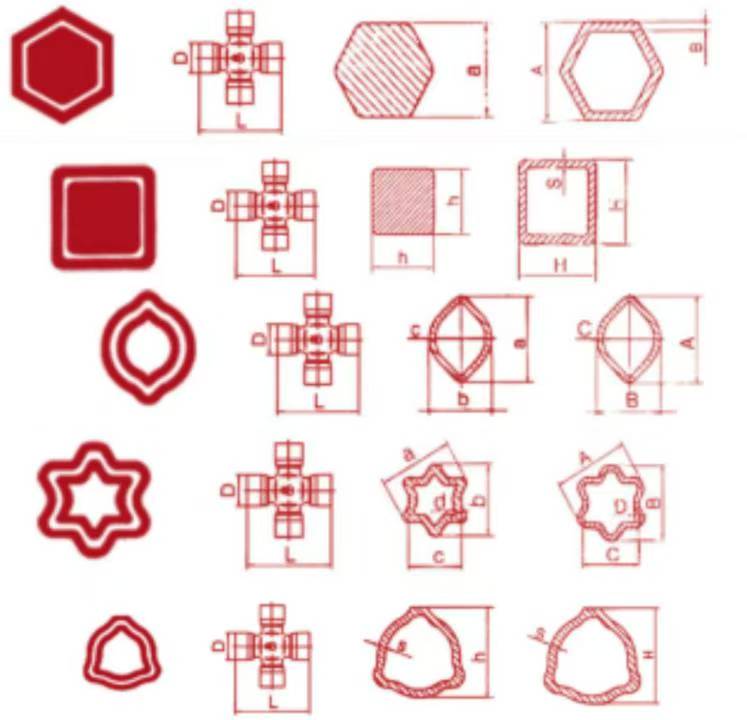

  一、Basic transmission type power takeoff shaft

  1.Triangular tube shaft：

  Featuring a fully sealed gearbox design,power transmission shafts ensures stable power transmission. Suitable for the daily operation needs of small and medium-sized tractors and agricultural implements, it is easy to disassemble and maintain.

  2.Star shaped shaft：

  This special star-shaped tube structure enhances the torsional strength, enabling it to be suitable for high-strength and long-duration agricultural machinery operations, such as hay harvesting in large pastures and deep plowing in farmlands.

  3.Lemon tube shaft：

  With a flexible transmission design, it can reduce vibration during operation and protect both the agricultural equipment and the power output shaft itself. It is suitable for equipment that requires smooth transmission, such as sowing and fertilizing machines.

  4.Spline tube shaft：

The composite spline design improves power transmission efficiency and reduces wear, making it suitable for high power, high load agricultural machinery operations such as combine harvesters and large silage harvesters.

  5.Square tube shaft：

  Square tube models 03Q to 08Q and hexagonal tube models 03D to 09D are sturdy and durable, highly impact resistant, and have precise installation and positioning. Square tube power transmission shafts are suitable for agricultural machinery operating on complex terrains, such as slope tillers and orchard-specific equipment.

  二、Dedicated matching power takeoff shaft

  1.Power takeoff shaft wide angle connector：

With a wide angle connector design, it can adapt to the multi angle operation needs of agricultural machinery, with flexible transmission angle, reducing power loss, and is suitable for agricultural machinery that requires frequent adjustment of the operating angle.

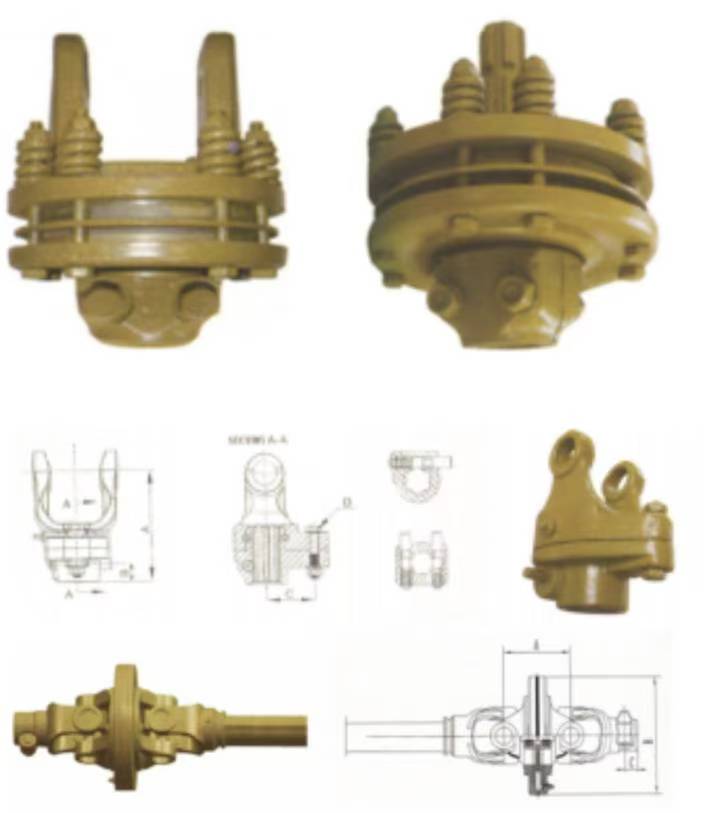

  2. Shear bolt type clutch power take off shaft：

  When the equipment exceeds its rated load, the safety bolts will automatically shear off to prevent damage to the power takeoff shaft and core components of the agricultural machinery, thus providing safety assurance for heavy duty agricultural machinery.

  3. Friction clutch power takeoff shaft：

  The power transmission shafts includes two main series: double group friction plates and double pin friction plates.The friction plate drive design enables smooth startup and load adjustment, supports 4-6 friction plates configuration, adapts to different load operation scenarios, has low maintenance costs, and a long service life.

  三、Product Advantages

  All power transmission shafts are customizable with splines to suit different brands and models of agricultural machinery. They are constructed from high strength steel in a single piece, with key components undergoing precision calibration and wear resistant treatment, balancing transmission efficiency and durability.

  Application scenario

  They are widely used in various agricultural machinery such as Hay rakes, harvesters, and seeders, providing reliable power for agricultural production.

  Take Action:

Feel free to reach out if you’d like to know more about the pricing—we’re here to help with all your questions

WhatsApp: 0086-19913007168,Email: sales@agrifarmingfirst.com
