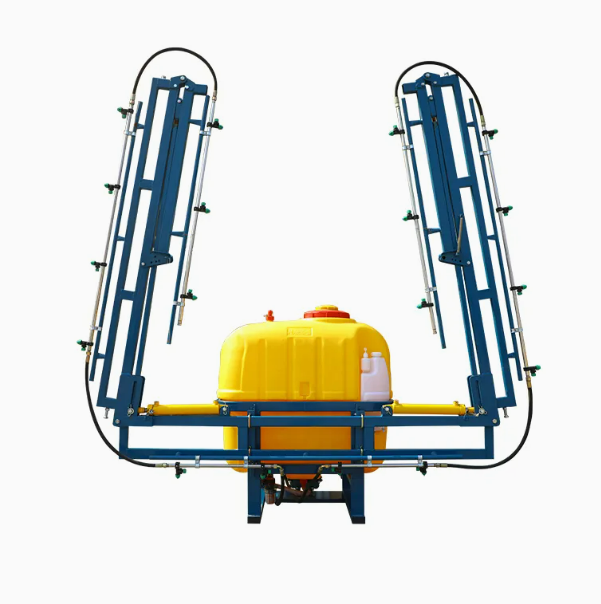

The Agricultural Hydraulic Boom Sprayer consists of a high-strength polyethylene tank, a fully hydraulic automatic folding boom, and a high-pressure diaphragm pump system. Our factory uses thickened square tubing as the main frame of the boom during manufacturing to ensure structural stability even in complex terrain. The core power source for the spraying equipment is the tractor's rear output shaft, which drives the specially configured diaphragm pump via a driveshaft. This mechanical connection ensures the equipment provides continuous and stable spray pressure, meeting the high-intensity plant protection needs of large-area farmland.
This Agricultural Hydraulic Boom Sprayer utilizes a hydraulic system to control the deployment and retraction of the spray boom, ensuring the nozzle is always maintained at the ideal ground clearance. After being pressurized by a diaphragm pump, the pesticide solution passes through a three-stage filtration system and enters the segmented valves, ultimately being sprayed out by the nozzle.Thanks to the hydraulic system, the operator can adjust the operating posture from inside the cab.
This sprayer is particularly suitable for field crops such as wheat, corn, and soybeans. Compared to traditional manual labor, this machine can complete spraying tasks covering hundreds of acres per day, greatly shortening the cycle of pest and disease control for crops.
1. After each field operation, the spray nozzles and filtration devices should be disassembled and cleaned promptly. The residual pesticide solution, impurities and sediment should be washed away to avoid nozzle blockage and filter clogging. This ensures that the Agricultural Hydraulic Boom Sprayer is uniform and the liquid flows smoothly next time, reducing equipment failures.
2. During daily use, the hydraulic pipelines and connection points should be inspected regularly. Special attention should be paid to checking for problems such as aging, cracking and leakage of the hoses. Once there is hydraulic leakage, it will directly affect the flexibility and operating accuracy of the spray pole folding and extending, and timely maintenance can ensure smooth and stable operation of the entire machine.
3. Before long-term storage in winter, the residual water in the drug storage tank, the conveying pipeline and the internal part of the water pump must be completely drained. In low-temperature environments, the residual water is prone to freeze and expand, causing the pump body to crack, the pipeline to be damaged, and the valve body to freeze and break. Draining the water in advance can significantly extend the service life of the equipment.
