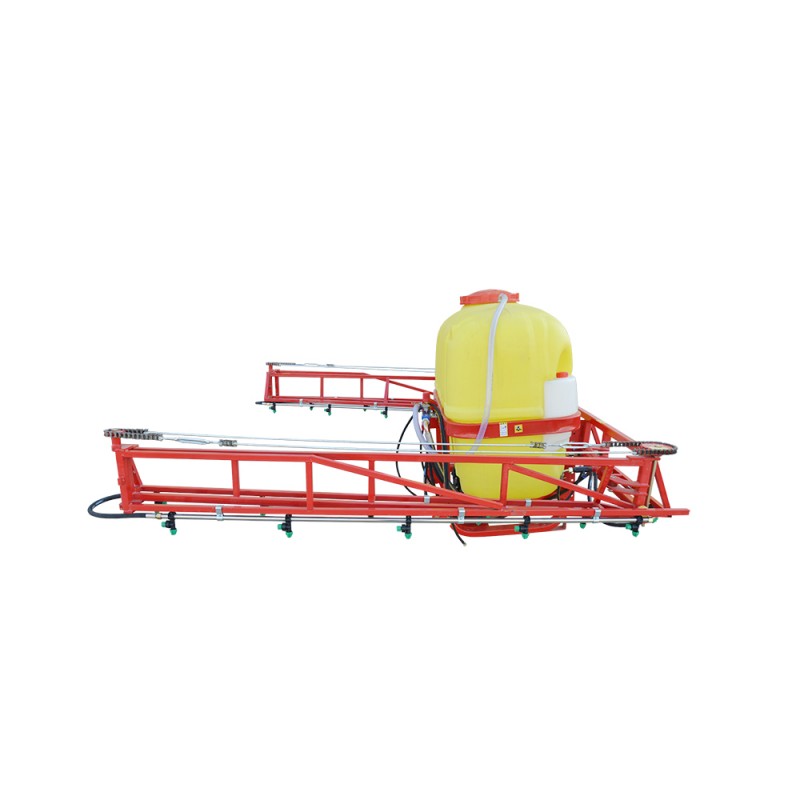

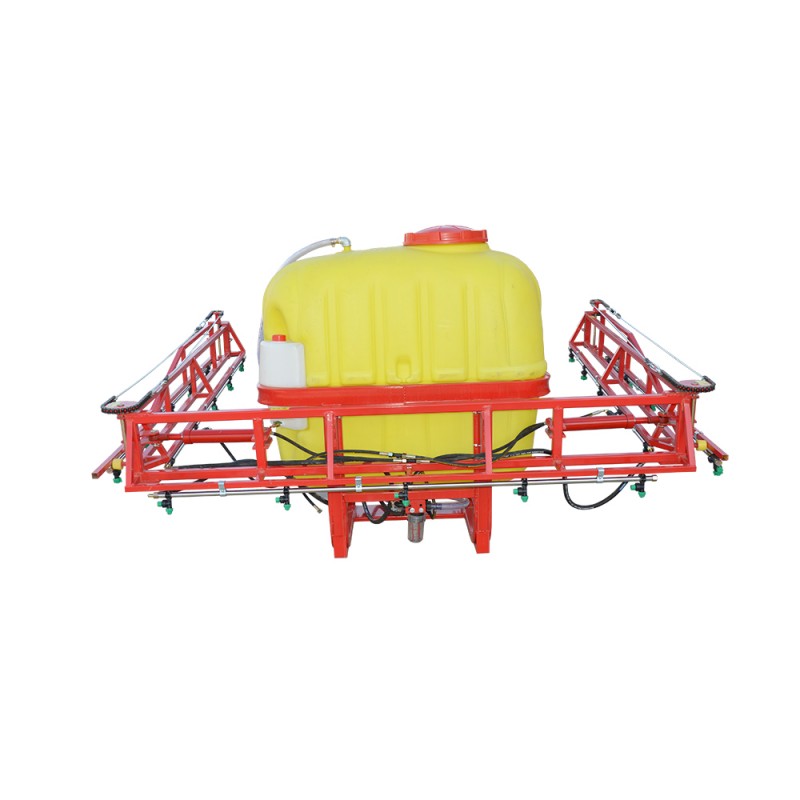

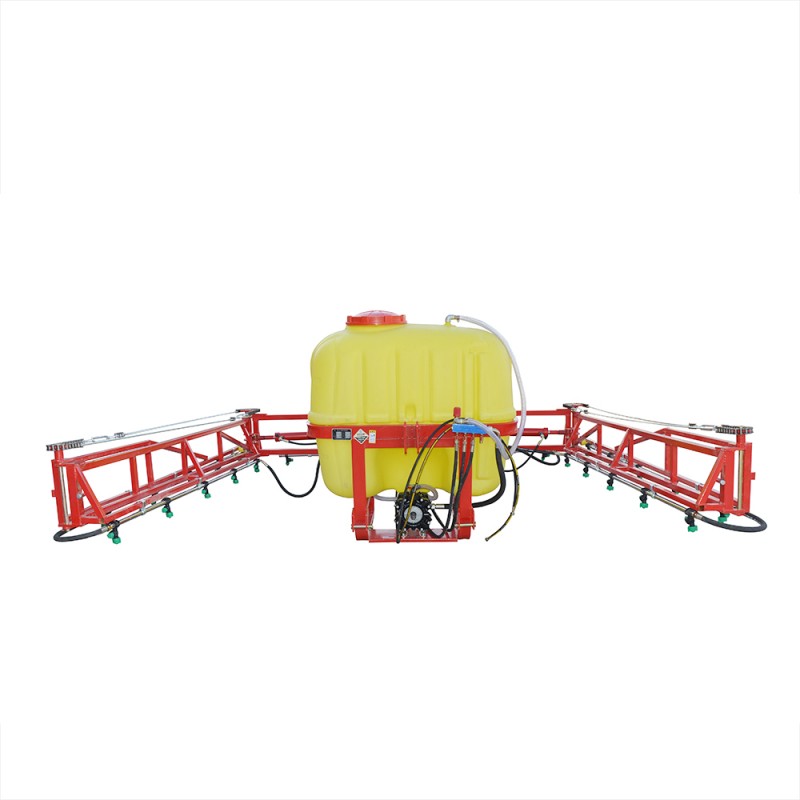

When working, the Agricultural Tractor Drawn Boom Sprayer is pulled by a tractor, and the tractor’s power drives the pump. The pump sends agrochemicals to the spray boom, which sprays atomized droplets evenly under the control of the panel of the Agricultural Tractor Drawn Boom Sprayer.
The spray boom of the Agricultural Tractor Drawn Boom Sprayer can be folded, making transportation and storage easier. The control panel allows operators to adjust spray volume freely, adapting to different crop growth stages.
The Agricultural Tractor Drawn Boom Sprayer comprises a durable liquid tank, adjustable spray boom, high-efficiency pump, and manual-automatic control panel. The liquid tank of the Agricultural Tractor Drawn Boom Sprayer holds various agrochemicals securely.
|
Model |
Structure |
Dimension(MM) |
Max Capacity(L) |
Matched Power(HP) |
Spray Rod Length(MM) |
Working Pressure(Mpa) |
Rated Flow(L/Min) |
Working Rate(Area/H) |
|
3WPX-400-8 |
Mounted Type |
1880*1140*1240 |
400 |
≥40 |
8000 |
0.8-1.0 |
60-80 |
20 |
|
3WPX-500-12 |
Mounted Type |
2700*1100*1300 |
500 |
≥40 |
12000 |
0.8-1.0 |
60-80 |
35 |
|
3WPX-600-8 |
Mounted Type |
2200*1190*2300 |
600 |
≥50 |
8000 |
0.8-1.0 |
80-100 |
20 |
|
3WPX-600-12 |
Mounted Type |
2700*1100*1440 |
600 |
≥50 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPXY-600-12 |
Mounted Type |
2700*3300*1400 |
600 |
≥50 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPX-800-12 |
Mounted Type |
2700*1140*1500 |
800 |
≥60 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPX-800-18A |
Mounted Type |
3000*3000*1500 |
800 |
≥60 |
18000 |
0.8-1.0 |
190 |
45 |
|
3WPXZ-800-18 |
Mounted Type |
3100*3100*1800 |
800 |
≥60 |
18000 |
0.8-1.0 |
190 |
45 |
|
3WPX-1000-12 |
Mounted Type |
2700*1000*1530 |
1000 |
≥60 |
12000 |
0.8-1.0 |
80-100 |
35 |
|
3WPX-1000-18 |
Mounted Type |
3100*3300*2100 |
1000 |
≥80 |
18000 |
0.8-1.0 |
190 |
45 |
|
3WPX-1200-22 |
Mounted Type |
4200*3600*2400 |
1200 |
≥80 |
22000 |
0.8-1.0 |
215 |
55 |
|
3WPX-1200-24 |
Mounted Type |
2400*2100*2900 |
1200 |
≥80 |
22000 |
0.8-1.0 |
215 |
55 |
The Agricultural Tractor Drawn Boom Sprayer has strong compatibility, matching most tractors of 30-100 horsepower without additional adapters. This compatibility makes the Agricultural Tractor Drawn Boom Sprayer a versatile tool for small and medium farms.
Large operating range is a highlight of the Agricultural Tractor Drawn Boom Sprayer. The spray boom can reach 6-12 meters, covering 0.3-0.5 hectares per hour, which is 10 times more efficient than manual work. The Agricultural Tractor Drawn Boom Sprayer saves time for busy farming seasons.
The Agricultural Tractor Drawn Boom Sprayer adopts anti-drip nozzles to prevent agrochemical waste and avoid crop burn. The spray boom’s height can be adjusted, ensuring the Agricultural Tractor Drawn Boom Sprayer works well for both short and tall crops like wheat and corn.
Durability is another merit of the Agricultural Tractor Drawn Boom Sprayer. The frame uses galvanized steel, and the tank is made of polyethylene, resisting corrosion from chemicals. The Agricultural Tractor Drawn Boom Sprayer has a long service life with little maintenance.
The Agricultural Tractor Drawn Boom Sprayer is easy to operate; even new users can master it quickly. The large filling port of the Agricultural Tractor Drawn Boom Sprayer prevents spilling, and the transparent tank lets operators check the liquid level at any time.
For hilly areas, the Agricultural Tractor Drawn Boom Sprayer has a stable structure, not tilting easily when moving on uneven ground. This stability ensures the Agricultural Tractor Drawn Boom Sprayer maintains uniform spraying quality in complex terrains.
